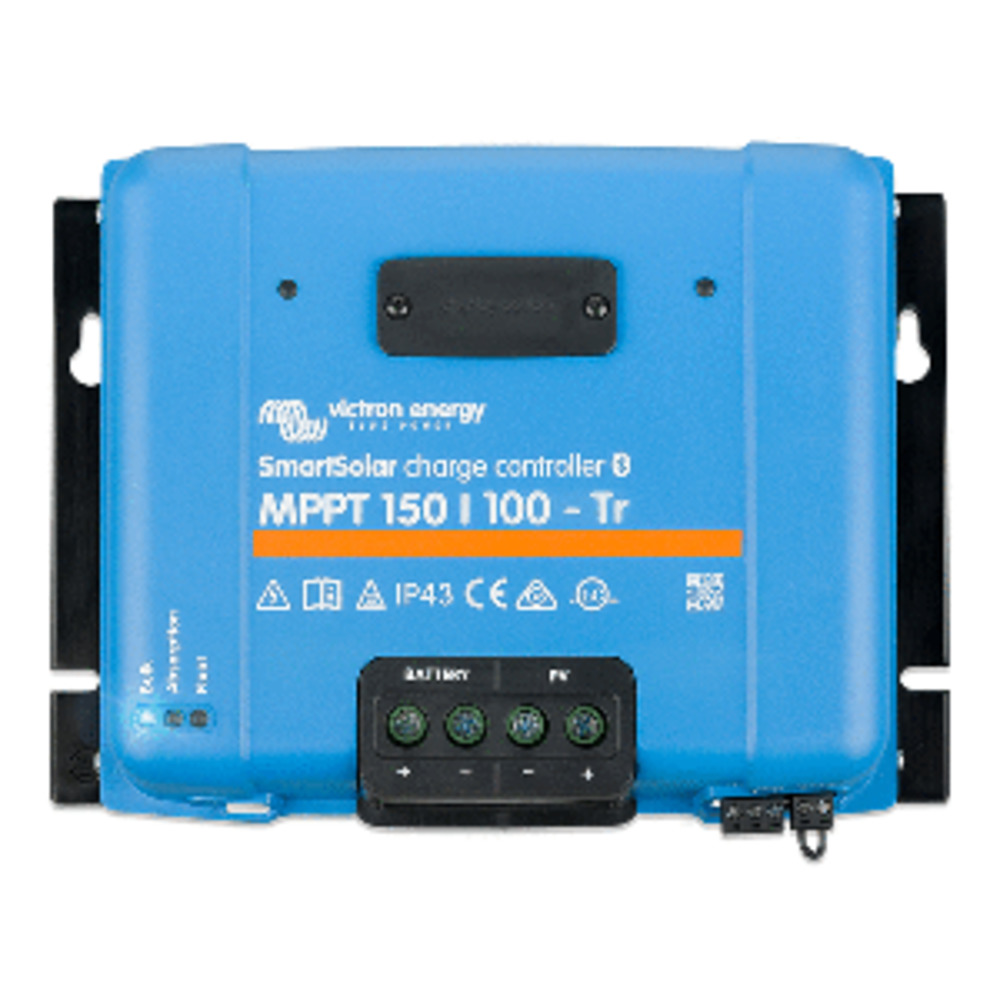

Victron SmartSolar MPPT Charge Controller – 150V – 100AMP

Victron SmartSolar MPPT Charge Controller – 150V – 100AMP

Victron Autotransformer - Split Phase 120/240V - 100AMPVictron SmartSolar MPPT Charge Controller - 150V - 85AMP
SKU: CWR-82986 Category:

618.16$

Description

SmartSolar MPPT Charge Controller – 150V – 100AMP

Features:

  • Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. and nbsp
  • Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. and nbsp
  • Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP. and nbsp
  • Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. and nbsp
  • Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details). and nbsp
  • Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. and nbsp
  • Internal temperature sensor Compensates absorption and float charge voltage for temperature. and nbsp
  • Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers. and nbsp
  • VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices and nbsp
  • Remote on-off To connect for example to a VE.BUS BMS. and nbsp
  • Programmable relay Can be programmed to trip on an alarm, or other events

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional information

Weight 12.6 kg
