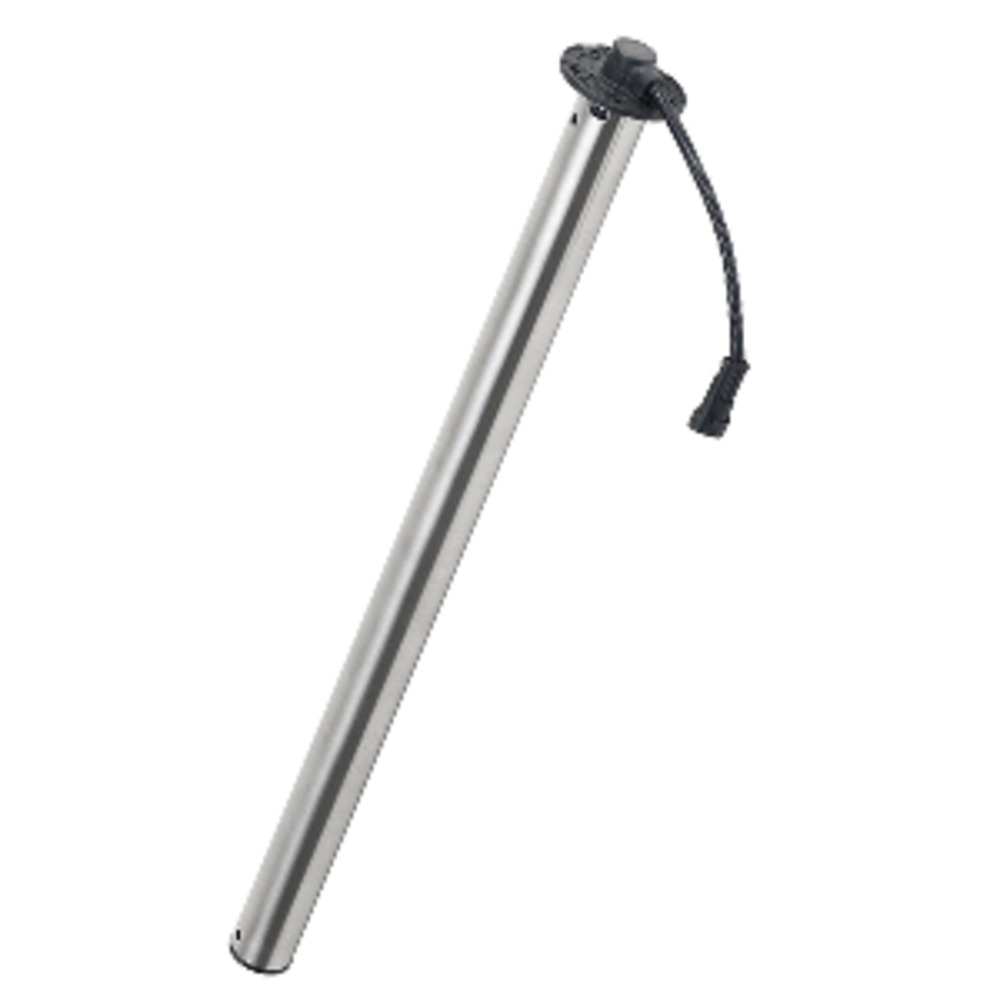

VDO Marine Deep-Pipe Level Sender – 360mm – Stainless Steel – 0-180 OHM

VDO Marine Deep-Pipe Level Sender – 360mm – Stainless Steel – 0-180 OHM

VDO Marine 2-1/16" (52mm) ViewLine Boost Pressure Gauge 2 Bar/30 PSI - 8-32V - Black Dial and amp; Round BezelVDO Marine 3-3/8" (85MM) ViewLine Tachometer 3000 RPM - 8V-32V - Black Dial and amp; Bezel
SKU: CWR-82696 Category:

34.34$

Description

Deep-Pipe Level Sender – 360mm – Stainless Steel – 0-180 OHM

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state. Sensors are made in various lengths starting at 150 mm increasing to 1200 mm and ndash please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted. and nbsp

Features:

  • TE Superseal Connector IP67
  • Compensation chamber
  • Flange: PA66 GF30
  • Wiring harness with length of 200 mm
  • 3 Signal ranges: 90 and ndash4 OHM, 0 and ndash 180 OHM, 240 and ndash33 OHM
  • Lengh: 150 mm and ndash1200 mm
  • Mounting diameter: 54 mm
  • IP67 protection rating

Additional information

Weight 1.2 kg
