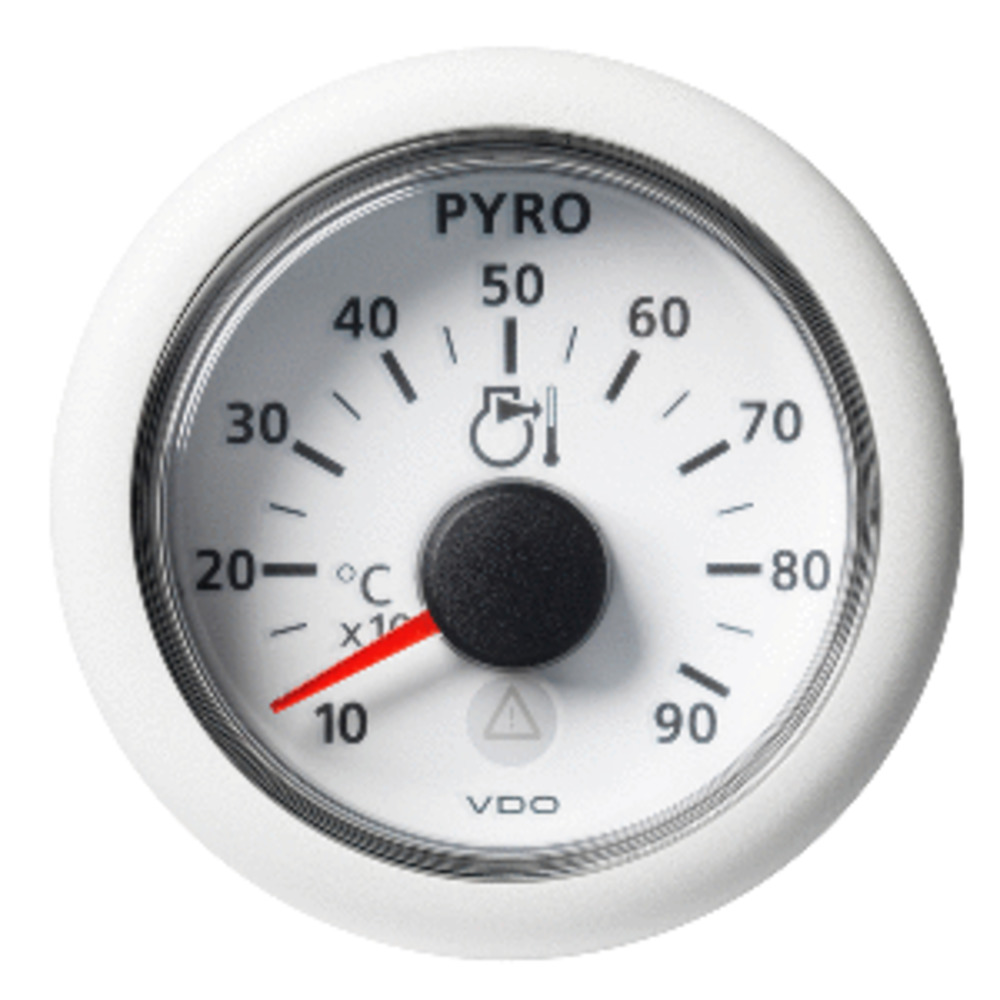

VDO Marine 2-1/16″ (52MM) ViewLine Pyrometer – 900 and deg;C/1650 and deg;F – 8 to 32V – White Dial and amp; Bezel

VDO Marine 2-1/16″ (52MM) ViewLine Pyrometer – 900 and deg;C/1650 and deg;F – 8 to 32V – White Dial and amp; Bezel

VDO Marine 2-1/16" (52MM) ViewLine Outside Temperature - +50 and deg;C/+120 and deg;F - 8 to 32V - White Dial and amp; BezelVDO Marine 2-1/16" (52MM) ViewLine Battery Status Gauge -150/+150AMP - 8 to 32V - White Dial and amp; Bezel
SKU: CWR-81546 Category:

27.24$

Description

2-1/16″ (52MM) ViewLine Pyrometer – 900 and degC/1650 and degF – 8 to 32V – White Dial and amp Bezel

ViewLine 52 mm Pressure Gauges are equipped with a red warning LED as a standard. The warning point depends on the chosen pressure sensor with warning contact or can be controlled by installing a make-point switch. and nbsp

Antifog plastic double lens, maximum precision and stylish design.

Specifications:

  • and nbsp8 pole Tyco / Hirschmann MQS plug
  • +/- 3.6 and deg angle degree accuracy over the entire display range and nbsp
  • Operating voltage 8 and ndash 32 V
  • Integrated warning alarm and nbsp
  • Input signal: standard and Omega values
  • Optional make-point switch can be connected
  • Reverse polarity protection
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Additional information

Weight 0.4 kg
