Description

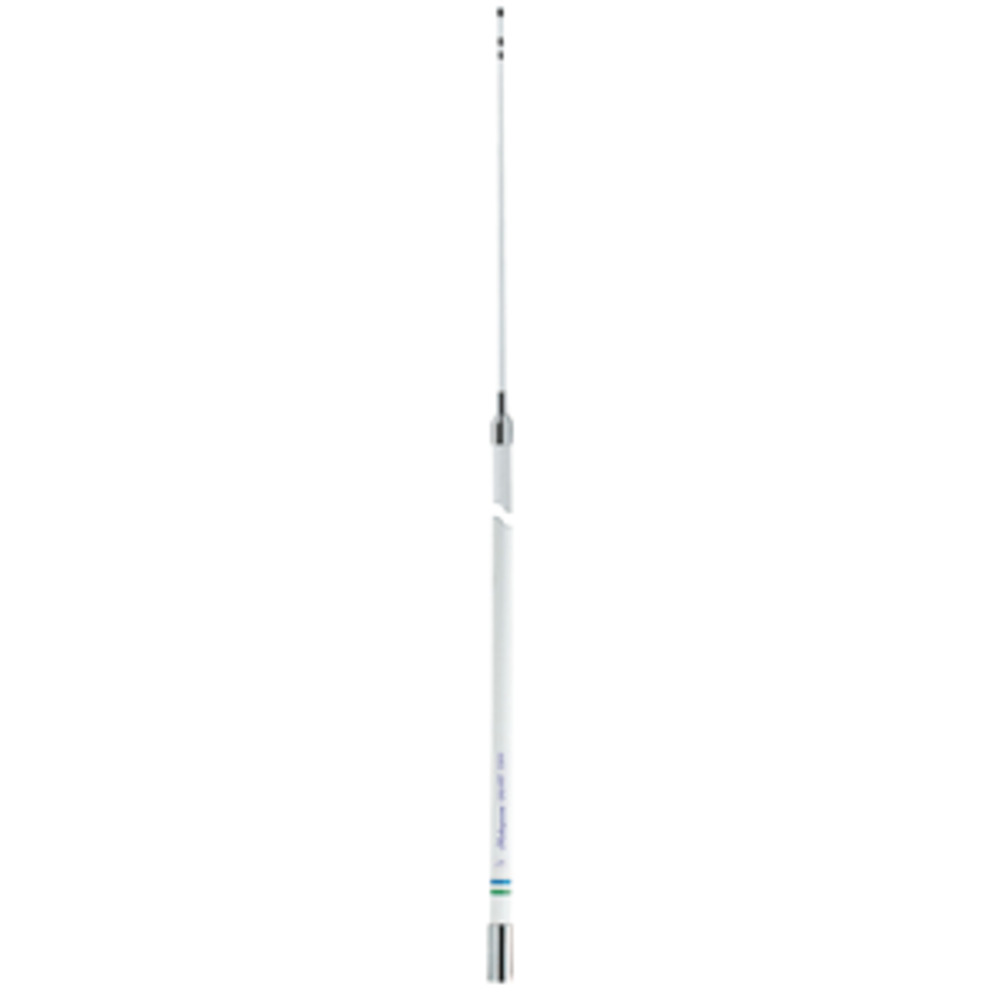

Shakespeare Galaxy Style 5399
9’6 and quot VHF 6dB Gain
Collinear-phased 5/8 wave with two coaxial chokes to suppress cable radiation
EXTRA TOUGH!
This professional quality antenna is a performance powerhouse. Its extra strong sturdy enough to be self-supporting, even in high winds and high speeds. Mounting on radar arch or T-top not recommended.
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1 and quot-14 thread
- 20′ RG-8/X low-loss cable plus a PL-259 connector
- Suggested mount: Use only Shakespeares extra heavy-duty Style 4187-HD Rachet Mount for self-supporting applications, or use a Style 452 mounting kit if an upper support bracket installation is preferred
- Two sections: Base 75 and quot, Tip 39 and quot – UPS shippable
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 3 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Gain: | 6 dB |
| Max Input (Watts): | 100 watts |
| DC Ground: | YES |
| Height (feet): | 9’6 and quot |
| Polarization: | Vertical |
