Description

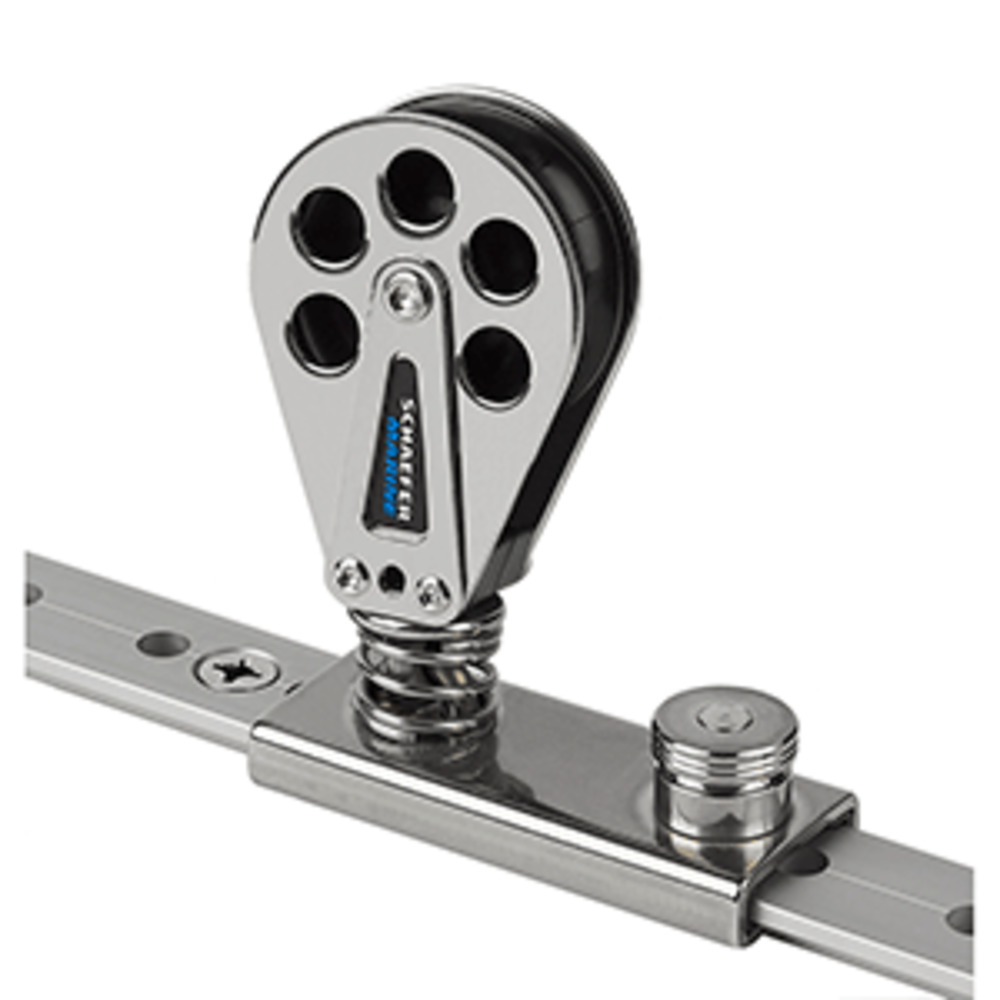

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4″ T-Track
Delrin and trade sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. and nbsp
Specifications:
- Track Size 1-1/4″ x 3/16″ (32 mm x 5 mm)
- Max. Boat Length 33′ (10 m)
- Max. Boat Weight 12000 lbs. (5455 kg)
- Max. Sail Area 520 sq. ft. (48 m2)
- Sheave Diameter 2-3/8″ (60 mm)
- Max Line 1/2″ (12 mm)
- Length 4″ (102 mm)
- Width 1-9/16″ (39 mm)
- Height 4-15/16″ (126 mm)
- Bearing Height 2-3/8″ (67 mm)
- SWL 2250 lbs. (1020 kg)
- Weight 14 oz. (397 g) and nbsp
