Description

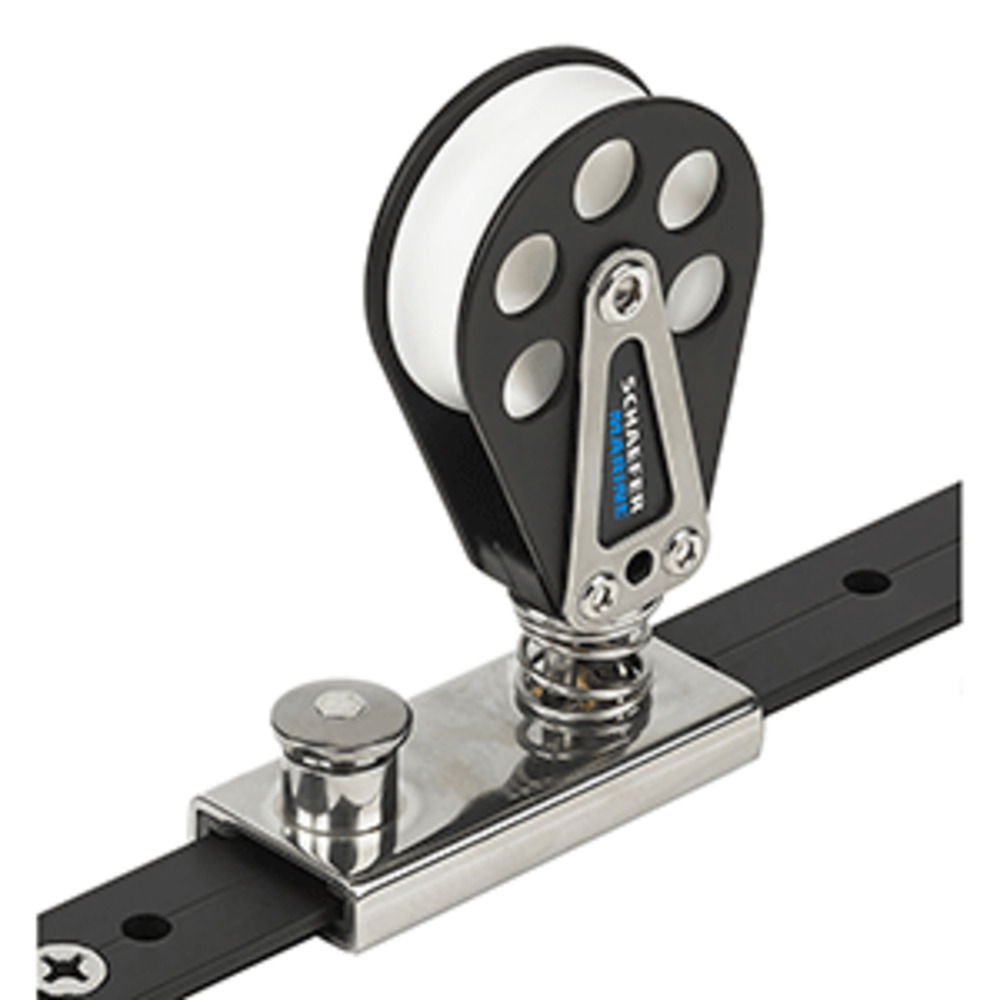

Spring Loaded/Lined Slide/Aluminum for 1″ T-Track
Delrin and trade sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. and nbsp
Specifications:
- Track Size 1″ x 1/8″ (25 mm x 3 mm)
- Max. Boat Length- 27′ (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2″ (51 mm)
- Max Line 7/16″ (11 mm)
- Length 3″ (76 mm)
- Width 1-1/4″ (31 mm)
- Height 4-5/32″ (105 mm)
- Bearing Height 2-7/32″ (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
