Description

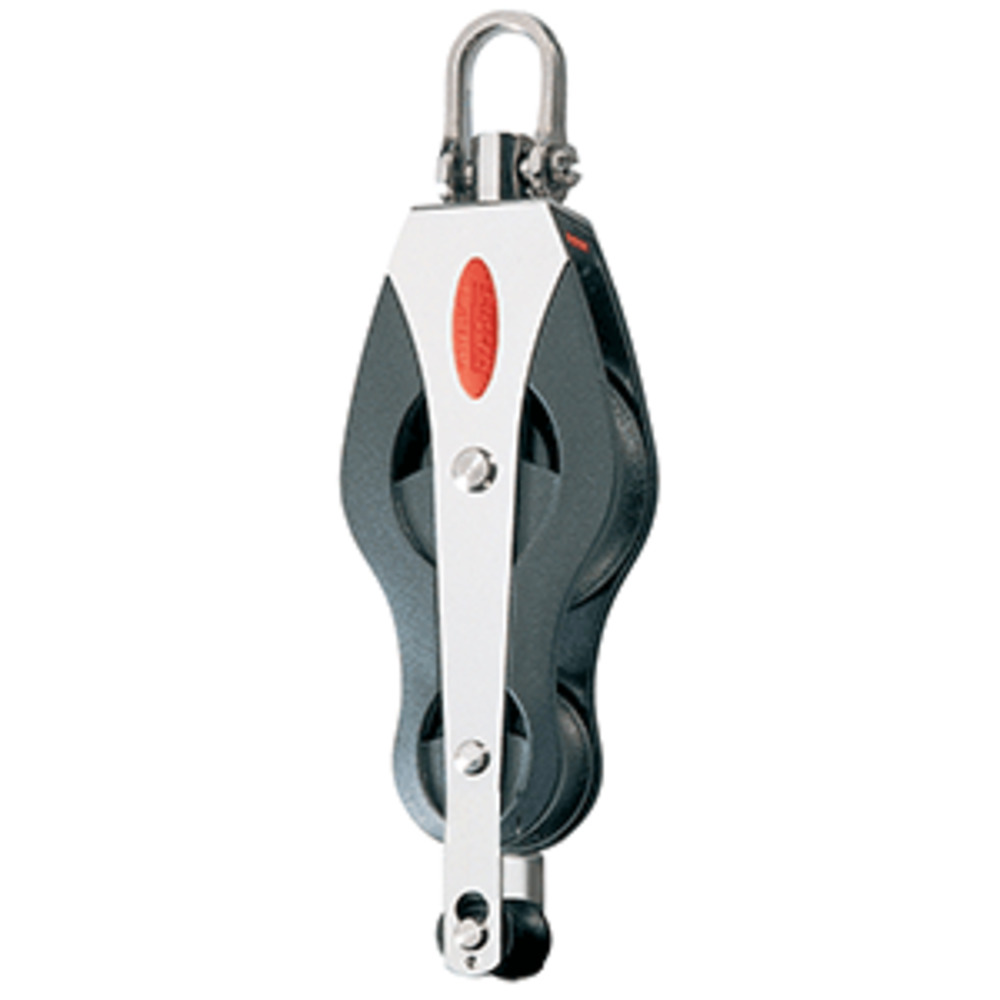

Series 40 Ball Bearing Block – Fiddle – Becket

Features:

• Low friction Acetal or Torlon and reg bearing system
• Lightweight
• Cheek cut-outs for easy bearing maintenance
• Captive Lock and trade universal head
• Slotted pin shackle eliminates fouled lines
• Snap fit removable becket pin

Sheaves running on Acetal or Torlon and reg ball bearings provide high performance and amp low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock and trade universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools

Applications:

• Mainsheet
• Halyard
• Vang
• Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
• Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs
• On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls.

Materials:

• Acetal ball bearings
• UV stabilized Acetal sheave
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fiber reinforced Nylon cheeks
