Description

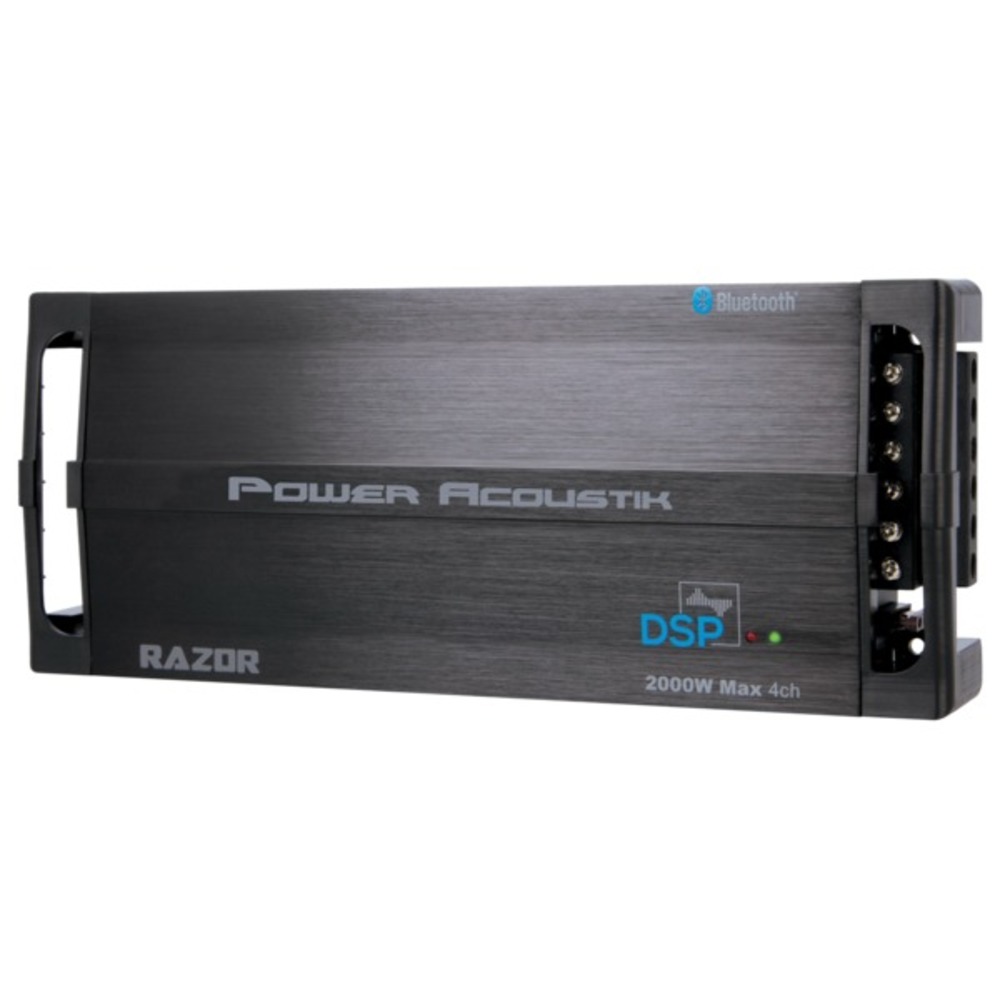

High efficiency full range amp with 56-bit digital audio processor powered by Analog Devices(TM)

Compact 4.75 in. chassis design for installation versatility

Audio tuning with user-friendly Razor DSP user interface with response display works with either free Razor DSP app for iOS(TM) or Android(TM) devices or USB connection to personal computer

Selectable ACC or signal sense turn-on

2,000 watts max power

190 watts x 4 at 4 ohms

250 watts x 4 at 2 ohms

500 watts x 2 at 4 ohms bridged

2 ohm stereo and 4 ohm bridged full range operation

Frequency response: 10 Hz to 20 kHz

Signal to noise ratio: 70 dB

Total harmonic distortion: .05%

200 millivolts to 4 volts low level RCA balanced inputs

30 volts max speaker/high level inputs

2 channel RCA output for subwoofer amplifier integration

Optional signal input from hands-free Bluetooth(R) module

Optional independent input or channel mixing/summing

8 gauge direct connect speaker wire terminals and direct connect power/ground wire terminals

10 band parametric equalizer

Independent high, low, or BP 20 to 20 kHz crossover

Independent 6 dB to 30 dB/octave crossover slope

Selectable Linkwitz-Riley, Bessel, or Butterworth Filter

12 dB bass boost increases low octave harmonics

MOSFET power supply with Audiophile Grade IR(TM) transistors

Military grade SMT (surface mount technology) PCB (printed circuit board) maintains dynamic performance

Direct short, thermal, and overload circuit protection

Dimensions: 4.75 in. W x 1.5 in. H x 12 in. L
