Description

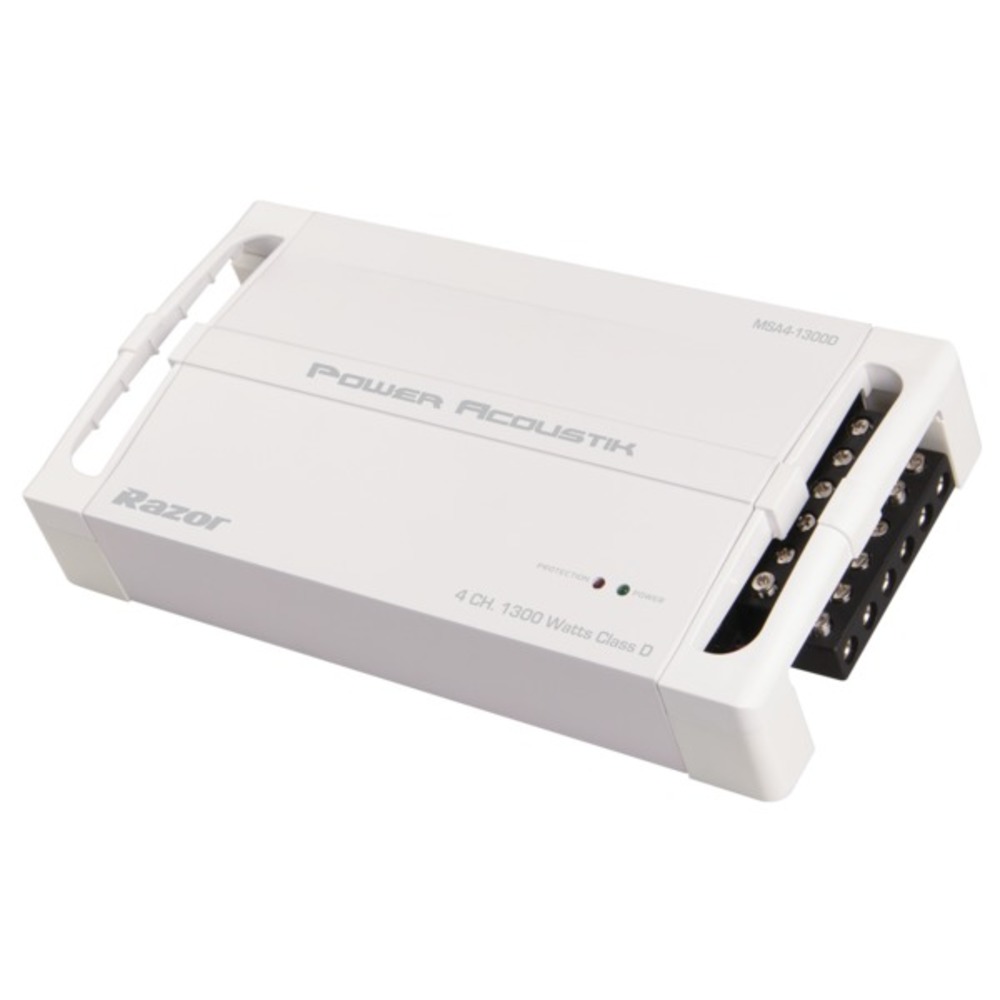

Compact 4.75 in. chassis design for installation versatility
1,300 watt max power
75 watts x 4 @ 4 ohm
125 watts x 4 @ 2 ohm
250 watts x 2 @ 4 ohm bridged
2 ohm stereo and 4 ohm bridged full range operation
Frequency response: 10 Hz to 20 kHz
Total harmonic distortion: .5%
Signal to noise ratio: 80 dB
Damping factor: >100
12 dB 81 Hz high pass and low pass crossovers
MOSFET power supply with audiophile grade IR(TM) transistors
Military grade SMT PCB maintains dynamic performance
Direct short, thermal, and overload circuit protection
200 millivolt to 6-volt low level RCA balanced inputs
High level input with Signal Sense auto turn-on
12 gauge speaker wire terminals
8 gauge power/ground wire terminals
Dimensions: 4.75 in. W x 1.75 in. H x 9.25 in. L
