Description

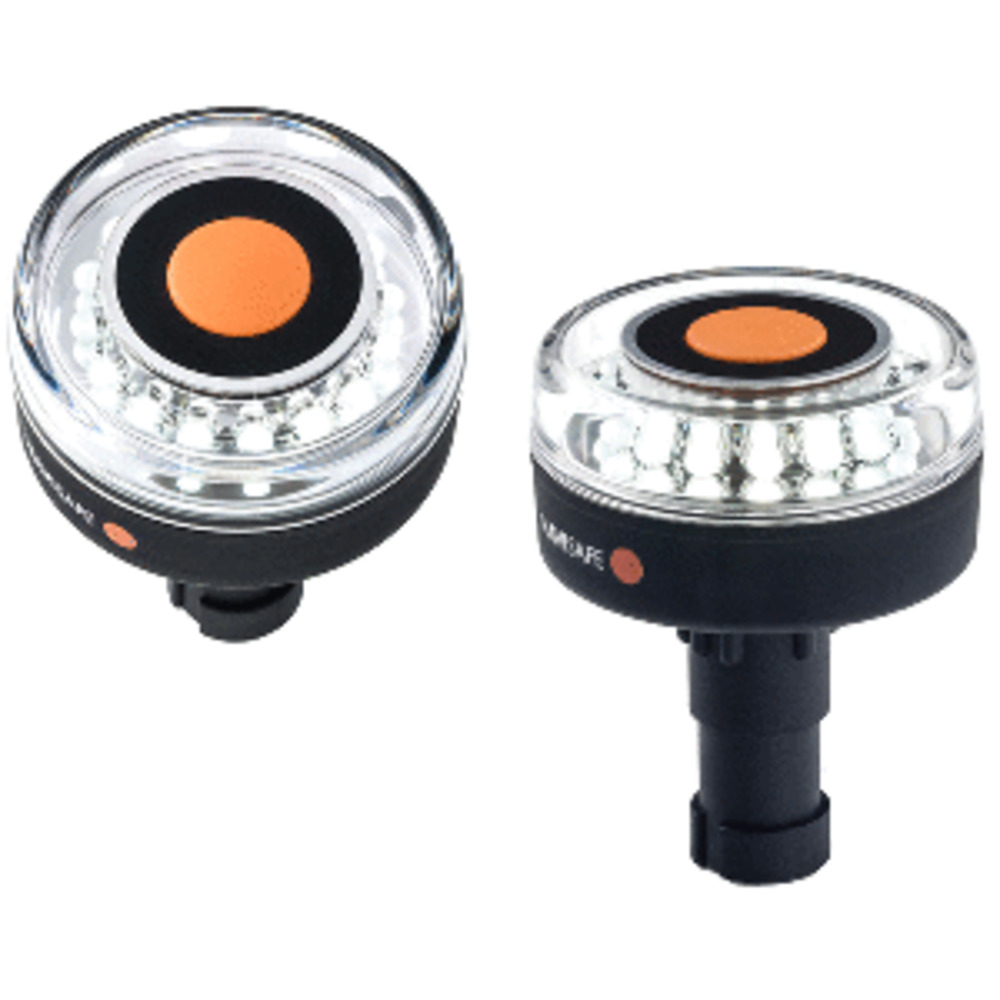

Navilight All-White 5 Mode 360 and deg 2NM with Scotty Base
The Navilight 360 and deg Scotty 2NM – US Coast Guard approved for 2 nautical miles is fully compatible with the Scotty Deck Mounting system and includes 360 and deg All-round light, 225 and deg Masthead light, 135 and deg Sternlight, Flashing light, Anchoring light and a Cabin light. It is battery operated, uses super bright LED light, is water proof and floats.
Examples of usage, based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.
On a power driven vessel underway of 12 meters or more in length but less than 50 meters in length:
- Sternlight
- All-round white light
On a power driven vessel underway of less than 12 meters in length:
Masthead light
- Sternlight
- All-round white light
On a power driven vessel underway of less than 7 meters in length whose maximum speed does not exeed 7 knots:
- All-round white light
Rowing/Paddle vessels
- All-round white light
Anchored vessels and vessels aground
- Anchor lights must always be shown from sunset to sunrise.
- All-round white light
Specifications:
- USCG Approval, 2 Nautical Miles
- 5 Modes: 360 and deg All-round light, 225 and deg Masthead light, 135 and deg Sternlight, Flashing light, Anchoring light, Cabin light
- Floatable, waterproof (20 m) and air-tight
- For use with Scotty Flush Deck Mounting system
- Powered by three AAA batteries (not included)
- Size: H = 85 mm, O = 68 mm
- Weight (net): 89 g
Modes/Approximate Burn Time
- 16 white LED, 360 and deg All-round light, Anchoring light/15hrs
- 16 white LED, 360 and deg Flashing light/85hrs
- 10 white LED, 225 and deg Masthead light/24hrs
- 6 white LED, 135 and deg Sternlight/32hrs
- 4 white LED, 360 and deg Cabin light/72hrs
Mounting System
The Navilight 360 and deg Scotty 2NM is designed to fit into the Scotty Deck Mounting system (Side/Deck Mounts, Flush Mounts) and requires no additional adapters. and nbsp
