Description

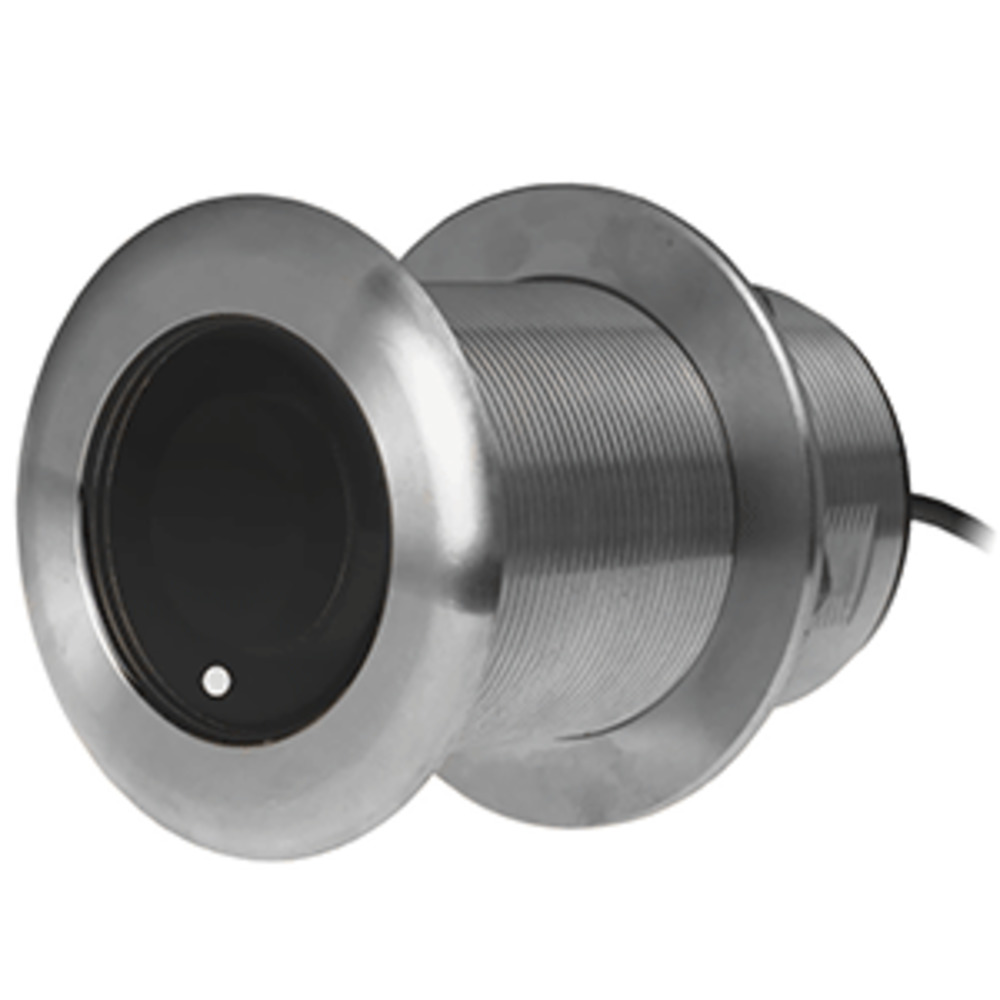

XSONIC SS75M Stainless Steel Thru-Hull Medium CHIRP Transducer – 12 and deg Element – 9-Pin
The SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
- 600 W Thru Hull Medium CHIRP (80-130kHz)
- Depth/Temp (12 and deg tilt)
- Black 9-pin connector
- Cable length 10M (33.0′)
- Easy to install
CHIRP
CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it and rsquos possible to distinguish between individual baitfish, game fish, and underwater structures.
Depth/Temperature
Calculates how deep the water is, so that you can avoid running aground, while also incorporating a temperature sensor for accurate water temperature readings.
Medium Frequency
CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
Highly Accurate
Provides extremely accurate data.
12 and deg Tilt
The 12 and deg tilt is ideal for boats with a 8 and deg to 15 and deg hull deadrise.
Low Profile
The low profile housing minimizes drag with just 5mm extending outside of the hull.
Plug and amp Play Connection
Easily connect to NSSevo3
