Description

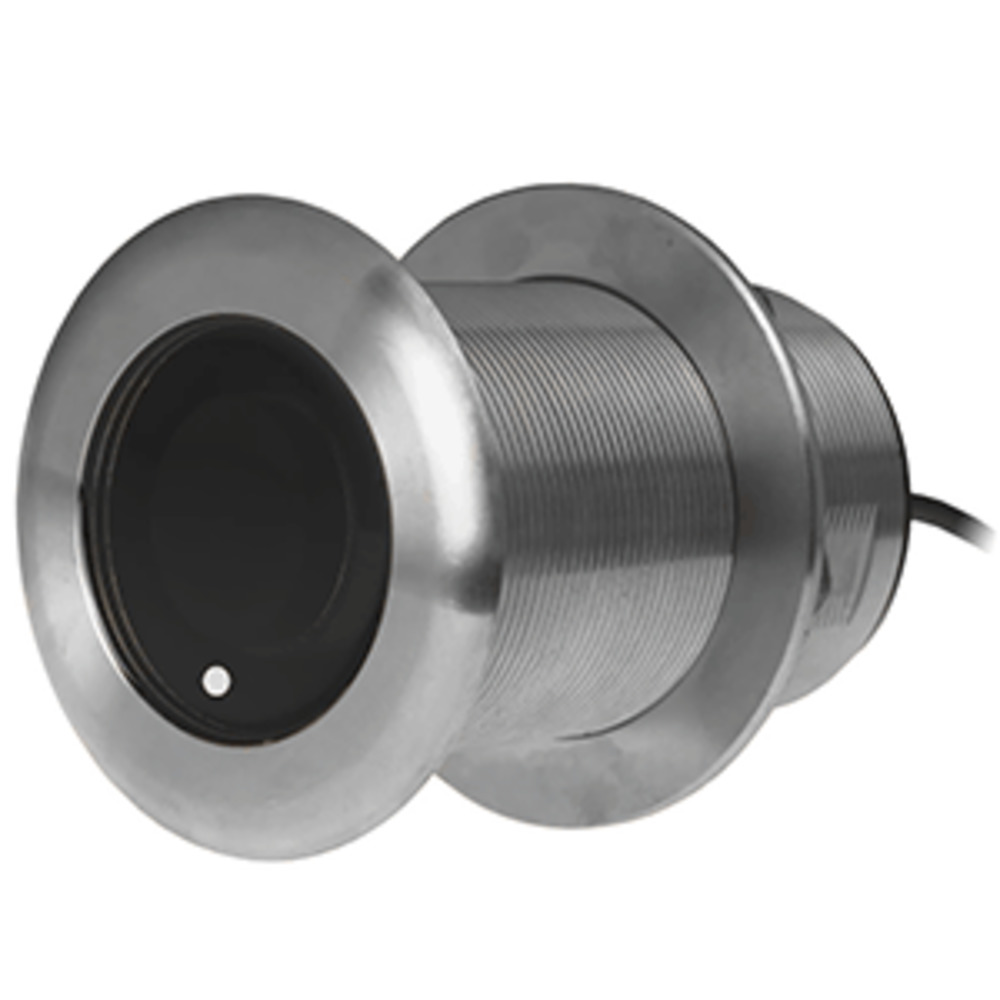

XSONIC SS75H Depth/Temperature Transducer 20 and deg – 9-Pin – 600W – 10M Cable
The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Features:
- CHIRP – CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it and rsquos possible to distinguish between individual baitfish, game fish, and underwater structures
- Depth/Temperature – Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
- Easy To Install
- High Frequency – CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
- Highly Accurate – Provides extremely accurate data.
- 20 and deg Tilt – The 20 and deg tilt is ideal for boats with a 16 and deg to 24 and deg hull deadrise.
- Low Profile – The low profile housing minimizes drag with just 5mm extending outside of the hull.
- Plug and amp Play Connection – Easily connect to NSSevo3, Lowrance
Specifications:
- Frequency: High CHIRP (130-210kHz)
- Power Rating: 600W
- Speed Sensor: No
- Temperature Sensor: Yes
- Mounting Style: Thru-Hull
- Elements: 1
- Beamwidth @ -3dB: 15 and deg to 9 and deg
