Description

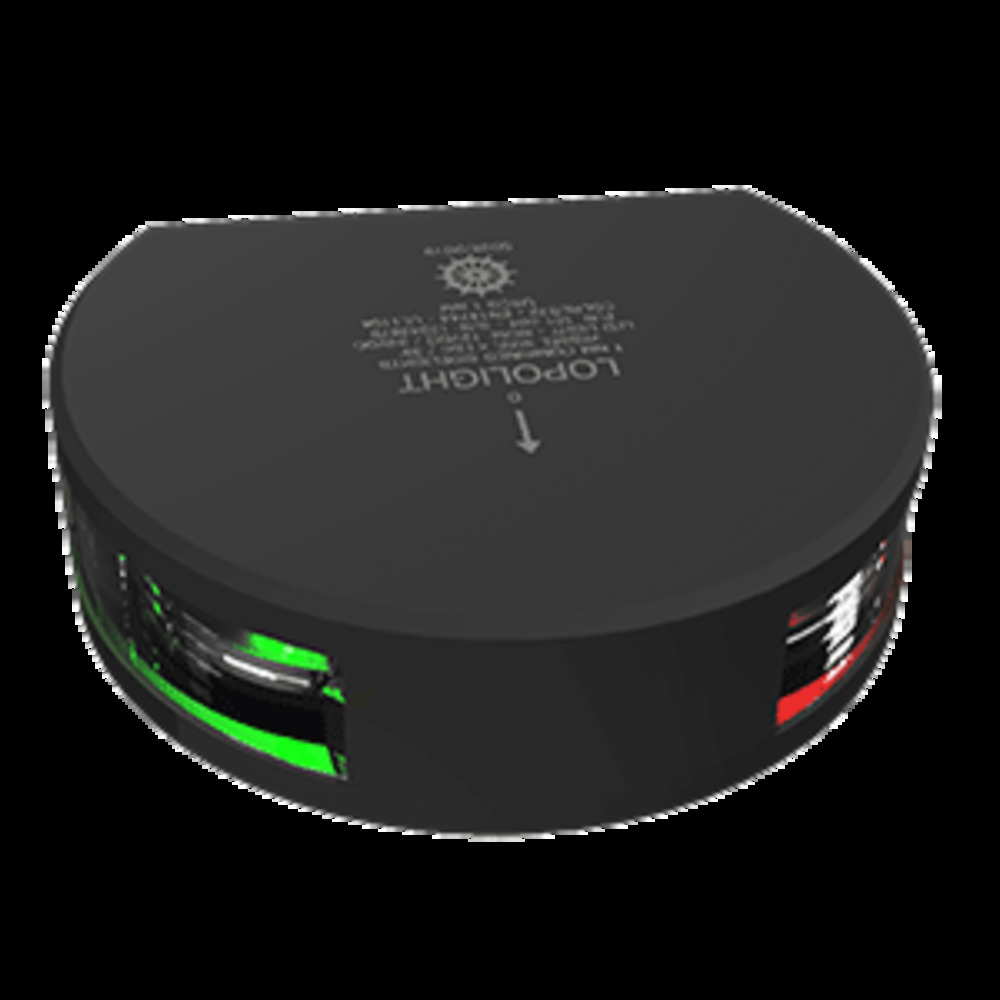

Combined Starboard and amp Port Sidelight 1nm/112.5 and deg+ 112.5 and deg – Black Housing – Vertical Mount

This LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.

The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration proof.

Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Together with an appropriate Control and amp Monitoring System, such as Lopolight and rsquos own NLC* this navigation light can form part of an IMO MSC 253(83), LY3 and LY4 compliant system.

Features:

• Vessel size: <12m (<39.4 and rsquo)
• Visibility: >1 nautical mile
• Intensity: >1,2cd
• Power consumption: 3,12 Watt Current: 0,26A @12 VDC – 0,12A @24 VDC
• Operating voltage: 10 – 32 VDC
• Number of LEDs: 2
• Light colour: Green / Red
• Operating temperature: -25 and degC to +55 and degC
• IP rating: IP68
• Mounting: Vertical
