Description

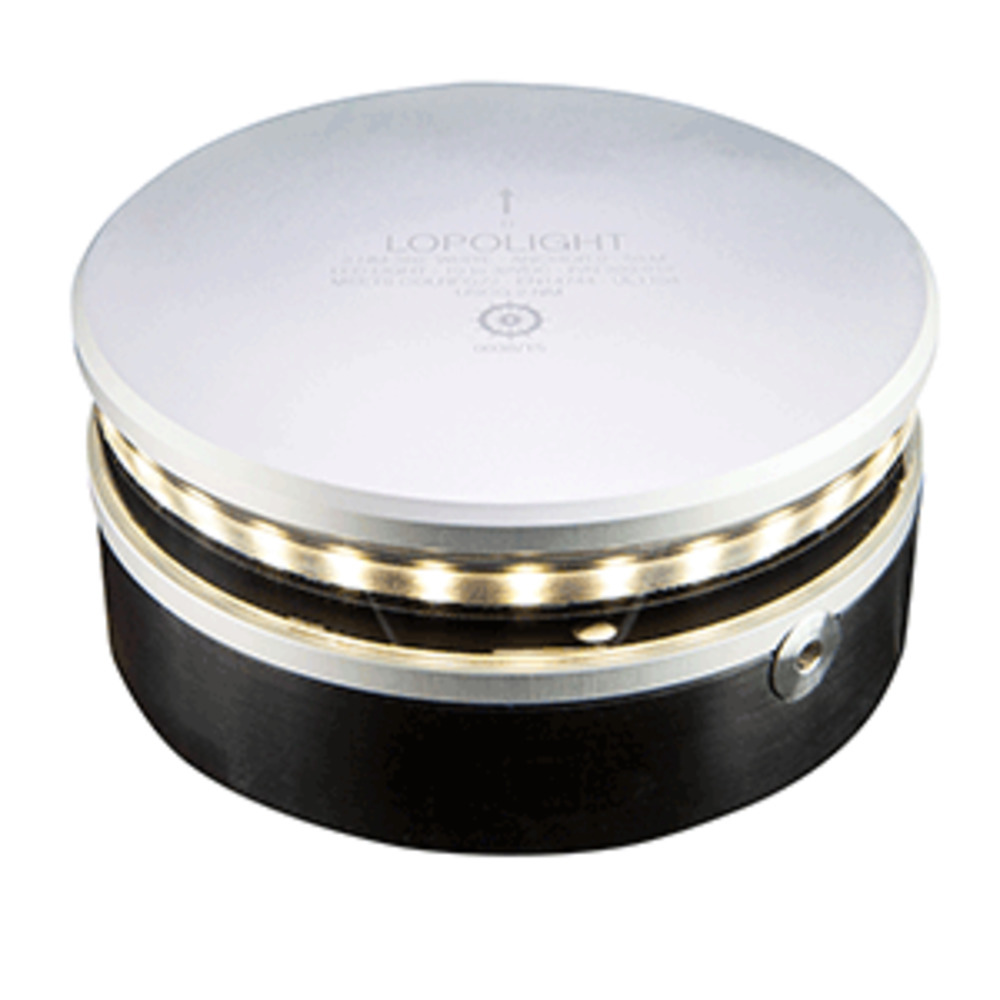

360 and deg White Anchor Light – 2nm for Vessels up to 164′(50M) – Round Housing – Horizontal Mounting with 15M Cable
Features:
- LED (Light Emitting Diode) navigation light
- Unique and precise definition of light angles
- Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics
- Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin
- Waterproof to IP 68+ (submersible)
- Lifetime over 50,000 hours or 4,200 nights
- Low power consumption – 70 to 90% less than traditional navigation lights
- Full brightness with input voltages ranging from 10 to 32 Volts
- All Lopolights have been tested several times during production, a total of more than 24 hours
- Easy to install, adaptor and screws included (when applicable)
Specifications:
- USCG Approved
- Mounting Block Measurements: 3.64″(92.5mm) and Oslash x 1.14″(24mm)H
- Light Measurements: 3.64″(92.5mm) and Oslash x 1.77″(45mm)H
- Weight: Mounting Block – 5oz (148g) / Light – 15oz(424g)
- Materials: Anodised Aluminum 25 and micro, PMMA lens, A4 Stainless Steel screws, Epoxy, Polyurethane
- Supply Voltage: 10-32VDC
- Power Consumption: 2.6W
- Current @ 12VDC: 0.22A
- Current @ 24VDC: 0.11A
- Inensity – White : >5.4cd
- Visibility (@K+0.8):White – 2nm
- Number of LEDs: 28
Included in Package:
- (1) Navigation light, pre-cabled with 0.7M shielded marine gradecable
- (1) Mounting Block w/Pre-Threaded set screws
- Installation Guide
- 15M Cable
