Description

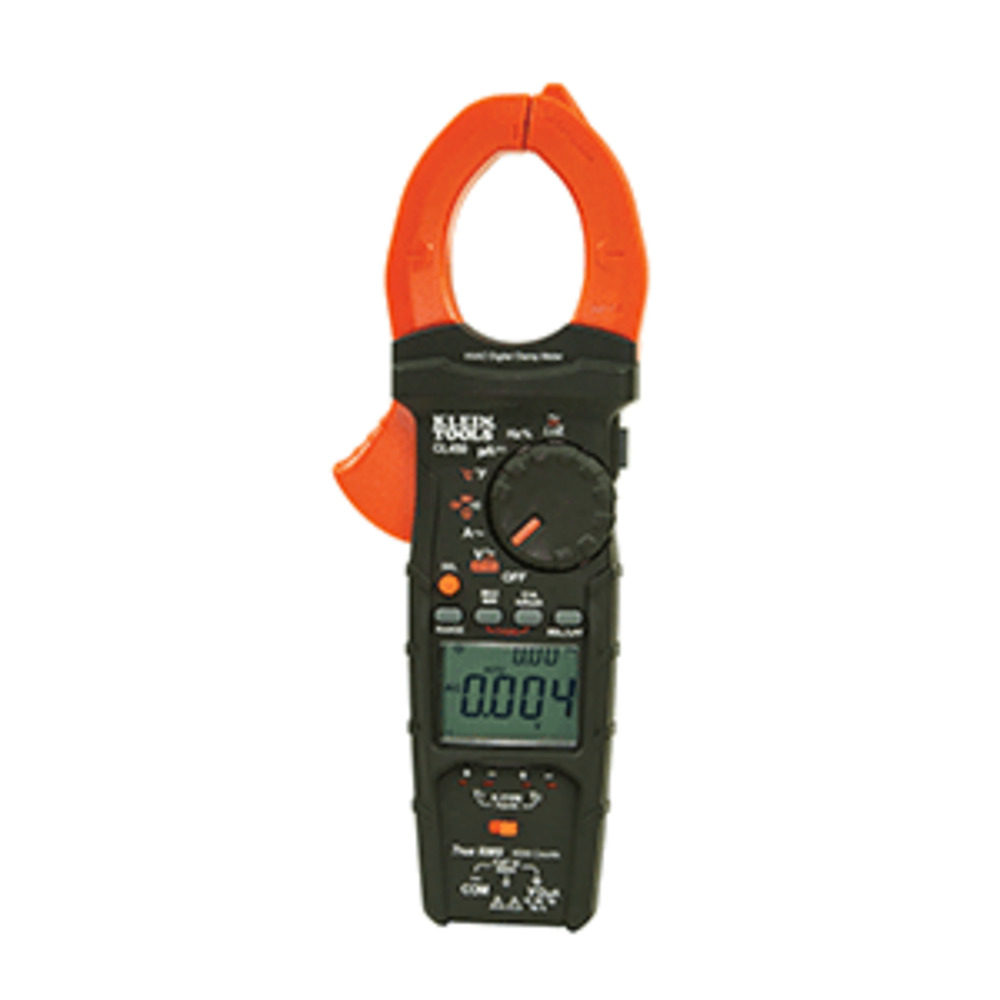

HVAC Clamp Meter with Differential Temperature

Features:

• Measures AC/DC voltage up to 1000V, 600A AC Current, 60M and Omega Resistance, DC millivolts and microamps
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
• Clamp measures AC current and inrush current
• Two K-Type thermocouple ports for differential temperature measurements
• Test leads measure AC/DC voltage, DC micro amp, resistance, LoZ, continuity, frequency, duty-cycle, capacitance, and diodes
• Dedicated mode for capturing DC micro amp and inrush current
• Low-Pass filter and Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
• Dual backlit 6000 LCD display for clear visibility in environments with low ambient lighting
• Rugged design with a 6.6-foot (2 m) drop protection and a CAT IV 600V Safety Rating
• Includes carrying case, instruction manual, straight input test leads, two K-type thermocouples, and 3 x AAA batteries
• Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
• Use with K-Type Temperature Pipe Clamp Cat. No. 69140, and K-Type Temperature Probe Cat. No. 69144 (sold separately)

Specifications:

• Application: HVAC
• Special Features: Differential Temperature with Digital Temperature Calibration Dedicated Mode for Capturing DC Micro Amp and Inrush Current Integrated Non-Contact Voltage Tester Low-pass Filter and Low Impedance (LoZ) Mode AC and DC Voltage
• Material: Plastic/Electronics
• Batteries: 3 x AAA
• Auto-Power Off: Yes
• Jaw Size: 2 and rdquo (50.4 mm)
• Drop Protection: 6.6′ (2M)
• Display: 6000 Count LCD
• Functions: Differential Temperature, Digital Temperature Calibration, DC Micro Amp, Inrush Current, Audible Continuity, Capacitance, Diode Test, Frequency and Duty Cycle, Low-pass Filter, Low Impedance, AC and DC Current, Min/Max, AVG, Data Hold Capability
• Voltage: 1000V AC 1000V DC
• Frequency: 999.9kHz
• Current: 600A AC
• Capacitance: 6000 and microF
• Ohms (Resistance): 60M and Omega
• AC Voltage: 1000
• DC Voltage: 1000
• DC Polarity Indicator: Y
• DC Micro-Amp: 200 and muA with 1 and muA Resolution
• Temperature Range: -40 and deg to 1832 and degF (-40 and deg to 1000 and degC)
• Standard: CATIV 600V, CATIII 1000V
• Included: Carrying Case, Instruction Manual, Straight Input Test Leads, Two K-type Thermocouples, and 3 x AAA Batteries
• Weight w/Batteries: 13.6 oz (386g)
• Overall Length: 10” (254.0mm)
• Overall Height: 1.59” (40.4mm)
• Overall Width: 3.77” (95.8mm)
• Weight: 12.5oz (354g)
