Description

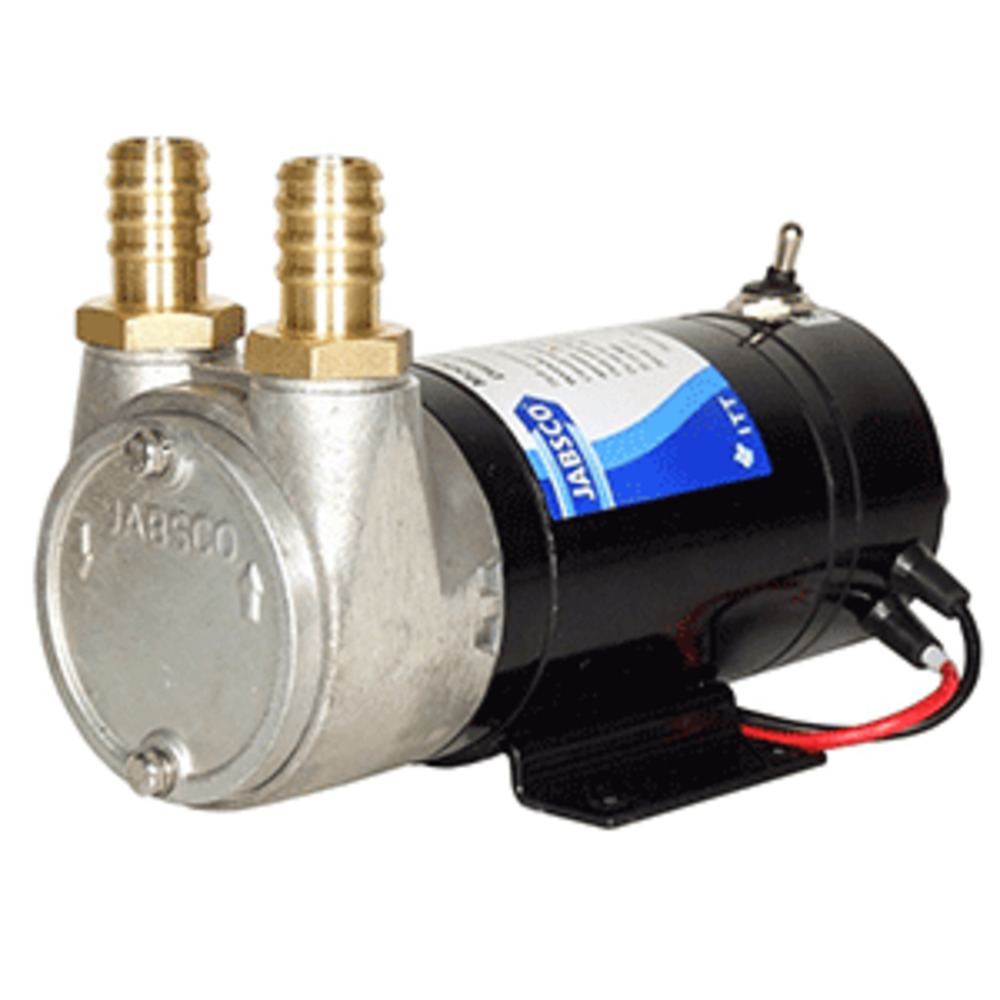

Sliding Vane Self-Priming Diesel Transfer Pump – 9 GPM and amp 24v

Designed for refueling small sizes diesel powered vehicles [typical tank sizes up to 200 litres (50 U.S. gallons)] from drums.

Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters.

Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity. .

Features:

• Faster refueling – 35 litres/minute (9.5 U.S.GPM).
• High head capability – 6 meters (19 feet).
• Self priming up to 2.8 meters (9 feet).
• Vibration tested. * IP55 protected motor and nbsp

Specifications:

• Temperature Range : -30 and degC to +40 and degC (-22 and degF to +104 and degF) and nbsp
• Pump Body : Aluminium and nbsp
• Rotor : Vectra and nbsp
• Vanes : PTFE Filled Ryton and nbsp
• Shaft : Steel and nbsp
• Seal : Nitrile and nbsp
• Lip Seal Ports : Vertical and frac12 and uml BSP or 19mm hose adaptors ( and frac34 and uml) and nbsp
• Motor : 24V permanent magnet, corrosion resistant IP55 protected and nbsp
• Duty : 25 mins @ +40 and degC (104 and degF)
• Current Draw: 7 Amps @ 3m head
• Maximum Current: 10 Amps
