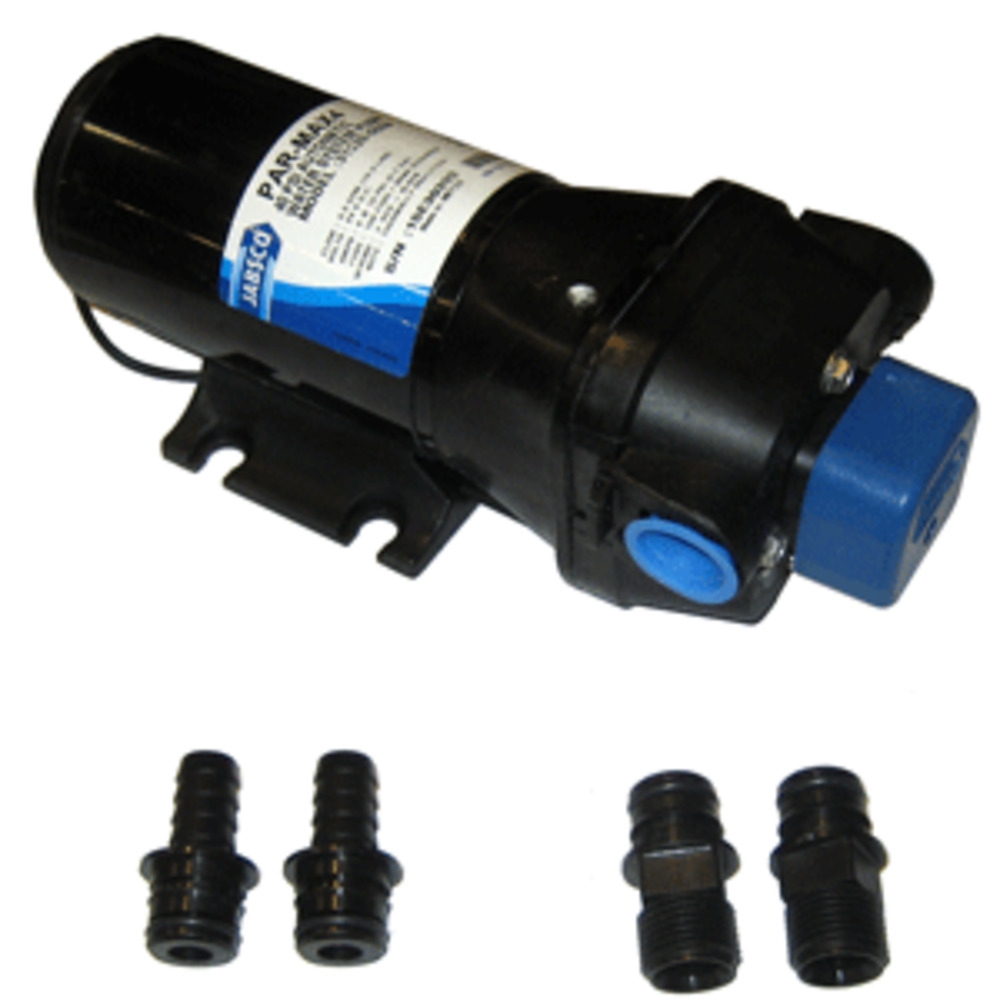

Jabsco PAR-Max 4 Water Pressure System Pump – 24v

Jabsco PAR-Max 4 Water Pressure System Pump – 24v

Attwood Frosted Globe All-Around Pole Light w/2-Pin Locking Collar Pole - 12V - 30"Lacoste Pour Femme Eau De Parfum Spray 1.6 Oz (new Packaging) For Women
SKU: CWR-34546 Category:

168.51$

Description

PAR-Max 4

WaterPressure System Pump

The PAR-MAX Automatic Water System Pump is designed for self-contained boats and RV and rsquos with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump instantly begins operation to provide a smooth constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation.

FEATURES

  • Self-Priming to 10 ft. (3 m)
  • Runs Dry Without Damage
  • Smooth Flow
  • Four Piston, Diaphragm Pump
  • Powerful Motor with Thermal Overload Protection
  • Snap-in Ports
  • Pressure Switch with Rubber Boot
  • Meets USCG Regulation 183.410 and EN ISO 8846 MARINE (Ignition Protection)
  • Meets EN 50081-1 Electro-magnetic Compatibility

SPECIFICATIONS

  • Pump Body and ndash Glass Filled Polypropylene
  • Pump Design and ndash Multi-Chamber Diaphragm
  • Suction Lift and ndash Self Priming to 10 ft. (3 m)
  • Ports and ndash 1/2″ (13 mm) Hose and amp 1/2″ (13 mm) Threaded (QEST Type)
  • Motor and ndash Permanent Magnet
  • GPM-LPM – 4.3/16.3
  • Volts – 24v
  • Nominal Cut-In – 20 psi
  • Nominal Cut-Out – 40 psi
  • Amp Draw @ 10 psi – 3 amp
  • Fuse/Breaker – 7 Amp
  • Shipping Weight and ndash and nbsp6.0 lb (2.8 kg) 31620-Series

WarningWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Additional information

Weight 6.47 kg
