Description

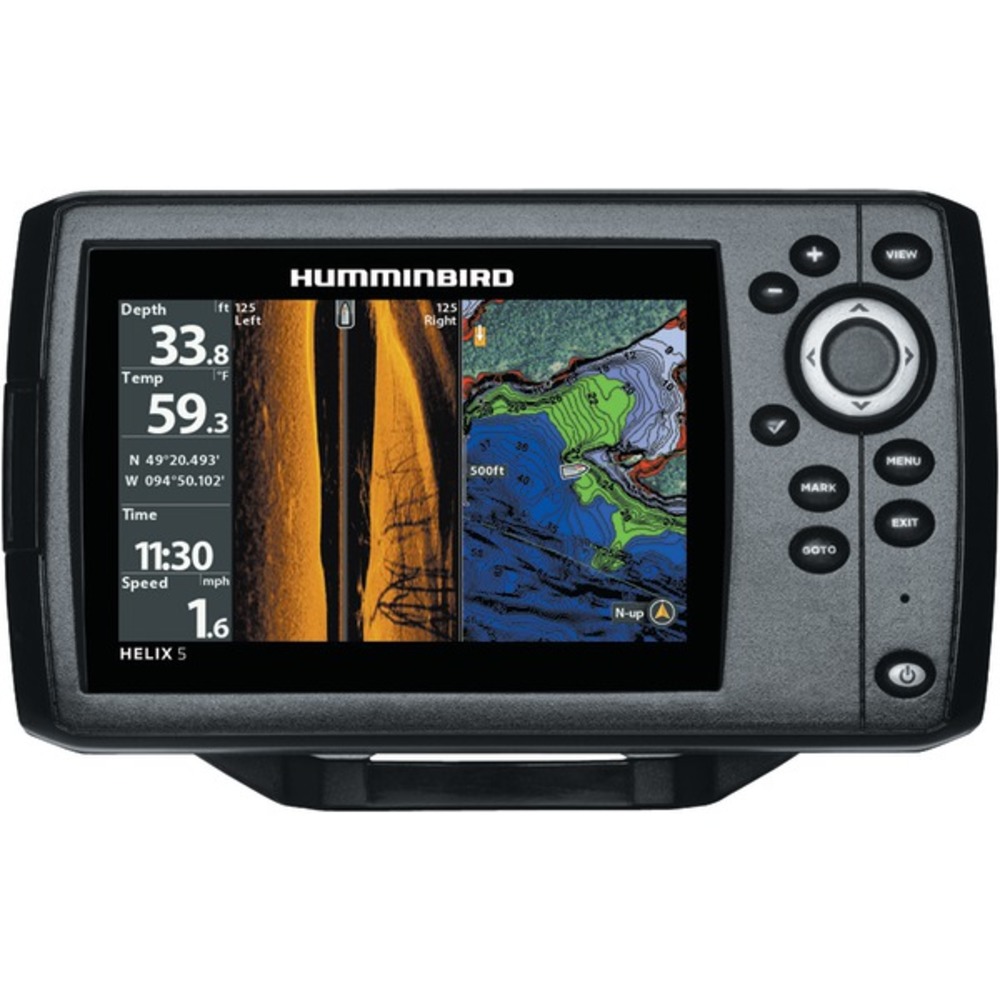

5″ color display with LED backlight

800 x 480 resolution

Side Imaging(R) sonar scans up to 240ft left and right of boat location, revealing 180deg side-to-side perspective on structure, cover and contour changes with crystal clarity

Down Imaging(R) 455kHz/800kHz sonar creates stunning detail of fish, reefs, timber, brush, bridge pilings and more below the boat

SwitchFire(R) sonar with Clear and Max modes

CHIRP digital sonar

DualBeam PLUS(TM) sonar for great detail and wide coverage area

Internal, precision GPS with built-in GPS antenna

Upgradeable software

Built-in UniMap(TM) covers the contiguous US coastline, inland lakes and rivers at 30m per pixel resolution

AUTOCHARTt(R) Live creates detailed maps with depth, vegetation and bottom hardness

SmartStrike(TM) map card highlights areas of the lake where fish are most likely to be biting

microSD(TM) Card slot

2,750 waypoints/47 routes

Compatible with several optional mapping suites

500W RMS/4,000W peak-to-peak

1,500ft depth capability

Includes transom mount transducer, cable and gimbal mount
