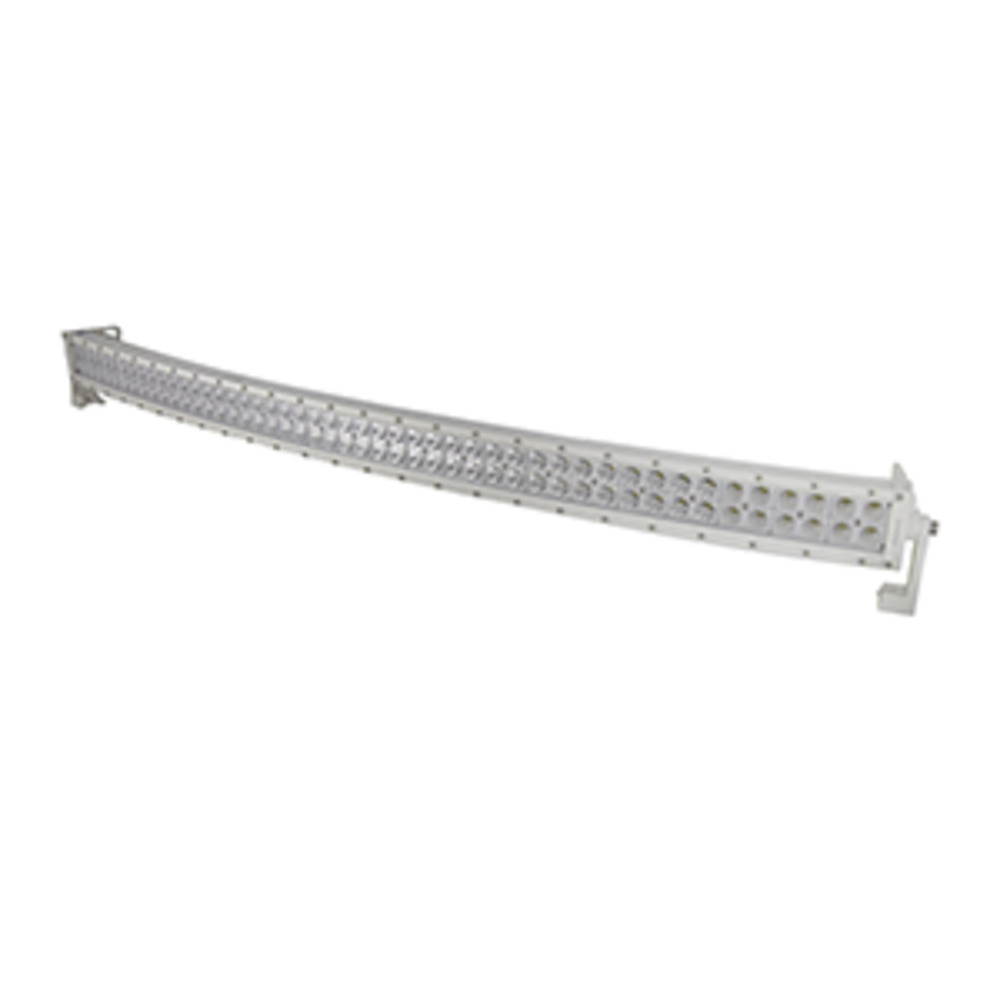

HEISE Dual Row Marine Curved LED Light Bar – 42″

HEISE Dual Row Marine Curved LED Light Bar – 42″

Maxwell Windlass Pressure Arm Upgrade Kit - Old ModelUFlex Power A M-P3 Main Power Supply Cable - 9.8"
SKU: CWR-69773 Category:

257.99$

Description

Dual Row Marine Curved LED Light Bar – 42″

Specs

  • Input Voltage: 10-30V DC
  • Wattage: 240 W
  • (80-3W and nbspCREE and nbspLEDs)
  • Raw Lumens: 19200
  • LUX and nbspat 10M: 780
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

  • Housing Material: Die-Cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore and reg
  • Lens Material: PC
  • Mounting Bracket: Die-Cast Aluminum
  • Hole Dimensions:
  • Brackets Turned Inward and ndash 41 inches
  • Brackets Turned Outward and ndash 43.5 inches
  • Mounting Bolt Drill and ndash 25 inches
  • Height of Light Bar Itself: 3 inches
  • Depth of Light Bar Itself: 3.5 inches
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

Operation

  • Operating Temperature: and ndash 40 degrees C to +60 degrees C
  • Current Consumption: 12 Amps at 13.8 Volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional information

Weight 13 kg
