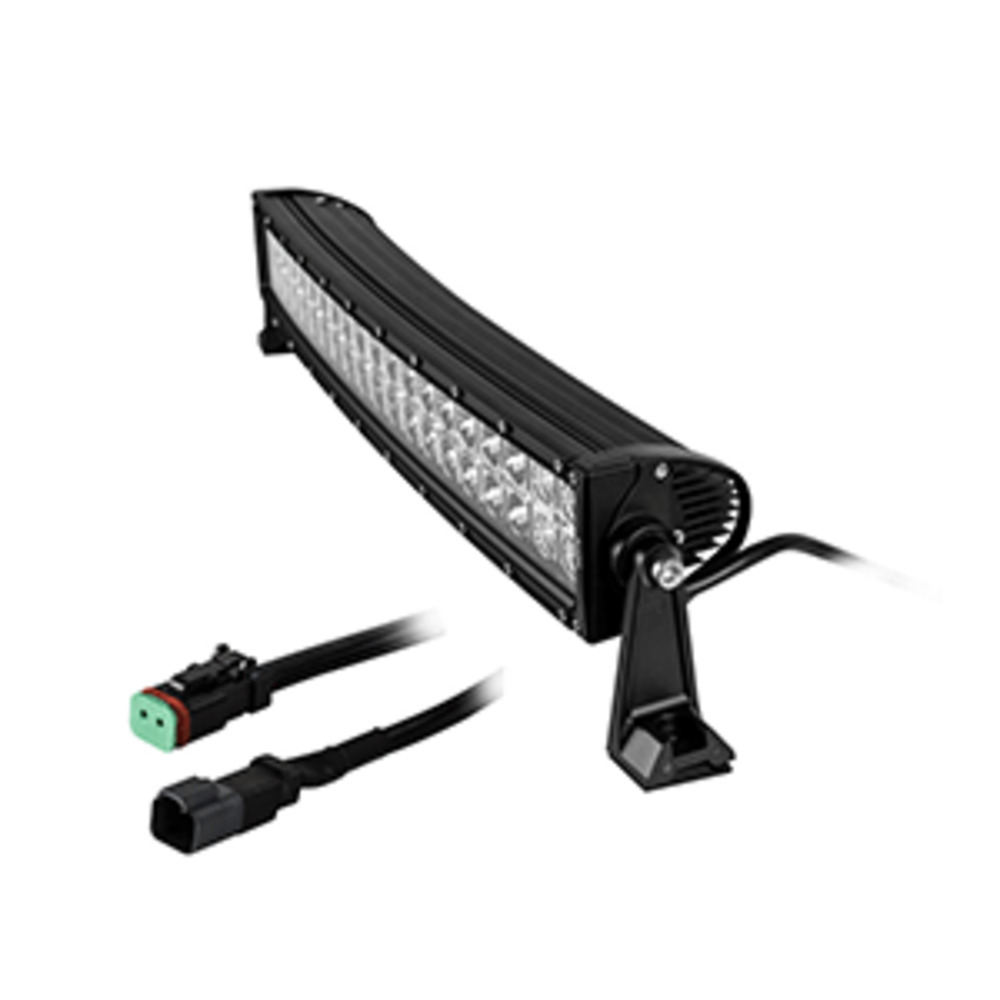

HEISE Dual Row Curved LED Light Bar – 22″

HEISE Dual Row Curved LED Light Bar – 22″

HEISE Dual Row LED Light Bar - 50"HEISE Dual Row LED Light Bar - 22"
SKU: CWR-69724 Category:

169.77$

Description

Dual Row Curved LED Light Bar – 22″

SPECS

  • Input Voltage: 10-30V DC
  • Power Consumption: 120W
  • (40-3W CREE LEDs)
  • Raw Lumens: 9600
  • LUX @ 10M: 480
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90 and deg)/Spot(8 and deg)

CONSTRUCTION

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: Black
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Length of Bar without Mounting Brackets: 22.3″
  • Hole Dimensions:
  • Brackets turned inward – 21.50″
  • Brackets turned outward – 23.75″
  • Mounting Bolt Drill – .25″
  • Height of Light Bar Itself: 3″
  • Depth of Light Bar Itself: 3.50″
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -40 and degC to +60 and degC
  • Current Consumption: 6.3 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional information

Weight 7.3 kg
