Description

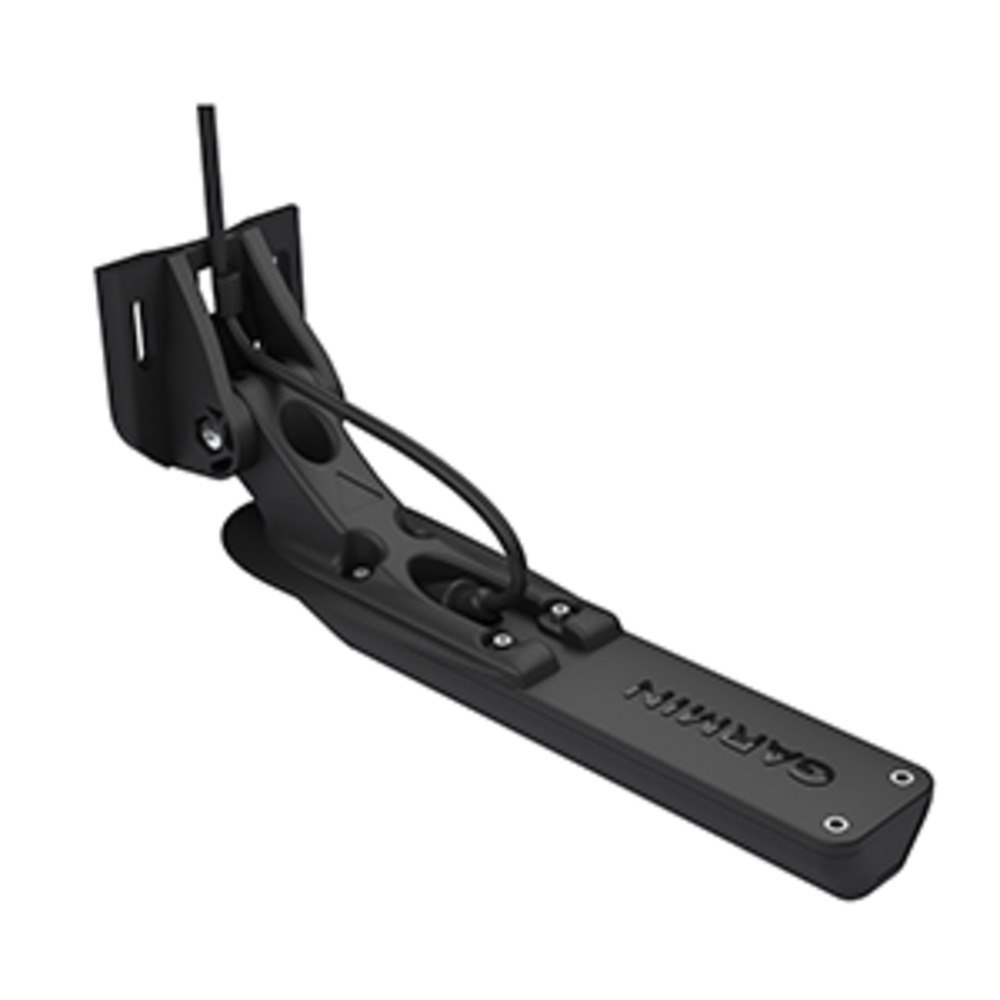

GT34UHD-TM Ultra HD Transom Mount Transducer

Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearV and uuml and Ultra High-Definition SideV and uuml scanning sonar images to your compatible chartplotter via the GCV and trade 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearV and uuml Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV and uuml Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearV and uuml: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideV and uuml: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W
• Beamwidth:

• Ultra High-Defintion ClearV and uuml: 0.74 and deg x 46 and deg
• Ultra High-Defintion SideV and uuml: 0.44 and deg x 55 and deg

• Maximum depth

• Ultra High-Defintion ClearV and uuml: 200′ down
• Ultra High-Defintion SideV and uuml: 125′ sides, 250′ total

• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20′
• Supported deadrise/Transom angles: 0 and deg-70 and deg degree transom
