Description

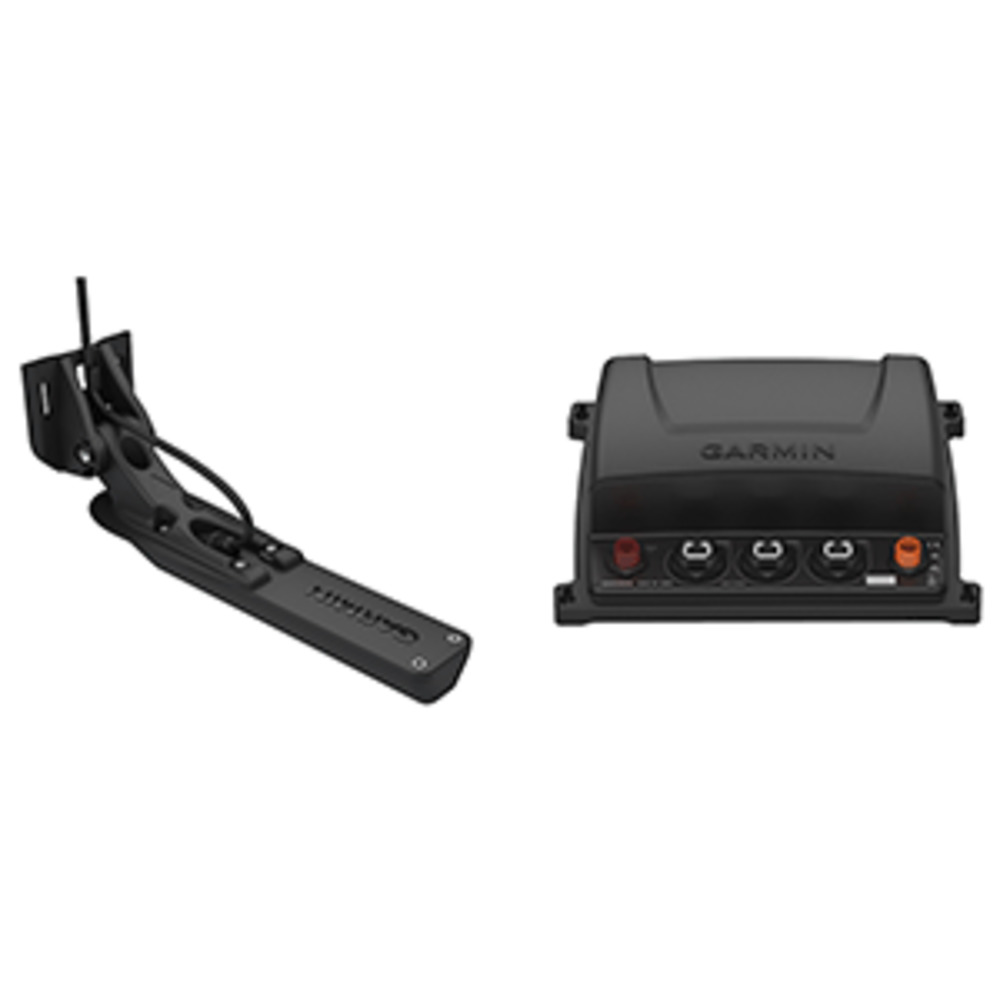

GCV and trade 20 Ultra HD Scanning Sonar Black Box with GT34UHD-TM Ultra HD Transom Mount Transducer

Add Ultra High-Definition Scanning Sonar to Your Compatible Chartplotter
The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearV and uuml and Ultra High-Definition SideV and uuml scanning sonars and mdash with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) and mdash to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix and trade all-seeing sonar. It includes a max power output of 500 watts.

Ultra High-Definition ClearV and uuml Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV and uuml Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

General:

• Physical dimensions: 9.9″ and times7.6″ and times2.6″ (251mm and times 192mm and times 66mm)
• Weight: 1.86lbs (845g)
• Water rating: IPX7
• Garmin Marine Network and trade ports: 3
• Temperature range: From 5 and degF to 158 and degF (from -15 and degC to 70 and degC)

Sonar Features and amp Specifications:

• Frequencies supported: and nbsp

• Ultra High-Definition ClearV and uuml: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideV and uuml: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Transmit power: 500W rms
• Maximum depth: and nbsp

• 200′ Ultra High-Definition ClearV and uuml
• 125′ to each side Ultra High-Definition SideV and uuml, 250′ total

What’s In The Box?:

• GCV 20
• Right-angle power cable
• Right-angle ethernet cable
• Mounting hardware
• Documentation

GT34UHD-TM Ultra HD Transom Mount Transducer

Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearV and uuml and Ultra High-Definition SideV and uuml scanning sonar images to your compatible chartplotter via the GCV and trade 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearV and uuml Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV and uuml Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearV and uuml: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideV and uuml: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W
• Beamwidth:

• Ultra High-Defintion ClearV and uuml: 0.74 and deg x 46 and deg
• Ultra High-Defintion SideV and uuml: 0.44 and deg x 55 and deg

• Maximum depth

• Ultra High-Defintion ClearV and uuml: 200′ down
• Ultra High-Defintion SideV and uuml: 125′ sides, 250′ total

• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20′
• Supported deadrise/Transom angles: 0 and deg-70 and deg degree transom
