Garmin GC 12 Marine Camera

Garmin GC 12 Marine Camera

BEP Remote Operated Battery Switch w/Optical Sensor - 500A 12/24vGarmin Fist Microphone Extension Cable - VHF 210/210i and amp; GHS 11/11i - 10M
SKU: CWR-74297 Category:

299.99$

Description

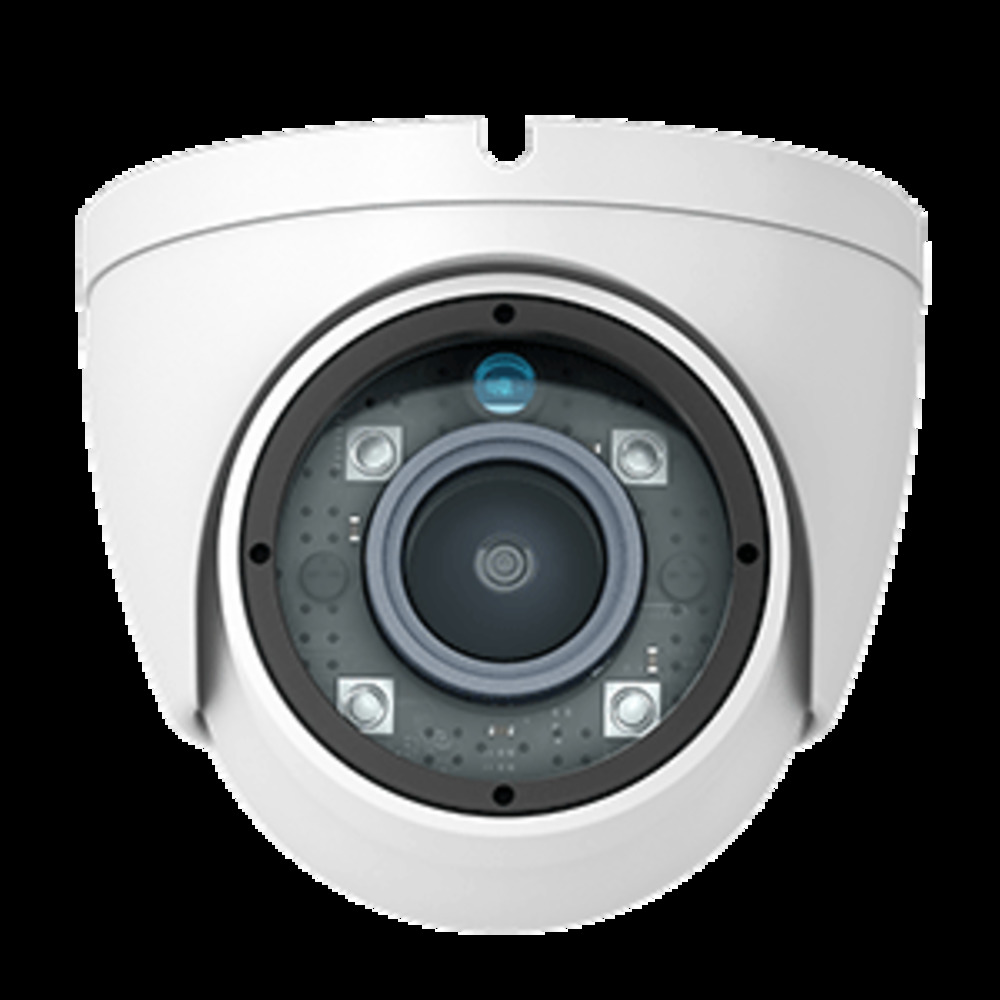

GC and trade 12 Marine Camera

See More Aboard Your Vessel

Features:

  • Provides an extra set of eyes aboard your vessel to monitor areas above or below decks
  • Analog camera delivers excellent quality images, even in low light perfect for engine rooms
  • Capable of broadcasting images on 1 chartplotter or across multiple networked compatible chartplotters
  • Reverse-image setting on compatible chartplotters helps when backing out of tight locations such as a crowded marina
  • Rotate images on compatible chartplotters 90/180/270 degrees so you can mount in any orientation

See more of what and rsquos happening on or around your boat with our GC 12 marine camera. With GC 12 on your vessel, you and rsquoll be able to monitor areas inside and outside while you’re on the water or while you and rsquore docked.

Keep an Eye on Everything

This small and discreet analog camera and nbspdelivers excellent quality images that can be viewed via onboard TVs, video monitors or compatible chartplotters that support video input. and nbspUse it in multiple areas above or below decks, and view on 1 chartplotter or across multiple networked compatible chartplotters.

Place It Almost Anywhere

GC 12 features a convenient reverse-image setting to help you back out of tight locations such as a crowded marina. It even provides clear images in low light, making it perfect for monitoring your dark engine room. Easy to install, its small size and rugged weatherproof case allow for flexible placement. and nbsp

Specifications:

  • Image sensor device: and nbsp1/3 and rdquo Sony 960H Double Scan Super HAD CCD II
  • Resolution: and nbspPAL: 976(H) x 582(V)
  • Scanning system: and nbspPAL: 625 Lines 2:1 Interlaced
  • Sync system: and nbspInternal
  • Low light vision range: Up to 10 meters
  • Viewing angle: and nbspD and timesH and timesV( and deg) = 95.0 and deg x 69.0 and deg x 52.0 and deg
  • Video output: and nbsp1.0Vp-p Composite 75 and Omega composite
  • S/N ratio: More than 52dB (AGC Off)
  • Operating temperature: From and nbsp-10 and acirc and bdquo and fnof to +50 and acirc and bdquo and fnof
  • Power consumption: 12VDC, 80mA (IR Off), 170mA (IR On)
  • Weight: and nbsp205 g
  • Dimensions: and nbsp50.5 mm (diameter) x 44.3 mm (H)
  • Cable length: and nbsp
  • Compass safe distance: and nbsp6 1/8 in. (155 mm)
  • Water rating: IPX7

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional information

Weight 0.45 kg
