Comrod AM/FM60 BI AM/FM 8 and #39; Antenna

Comrod AM/FM60 BI AM/FM 8 and #39; Antenna

Azzaro By Azzaro Gift Set -- 3.4 Oz Eau De Toilette Spray + 2.2 Oz Deodorant Stick For MenChristina Aguilera Red Sin By Christina Aguilera Eau De Parfum Spray 1.7 Oz For Women
SKU: CWR-66280 Category:

192.05$

Description

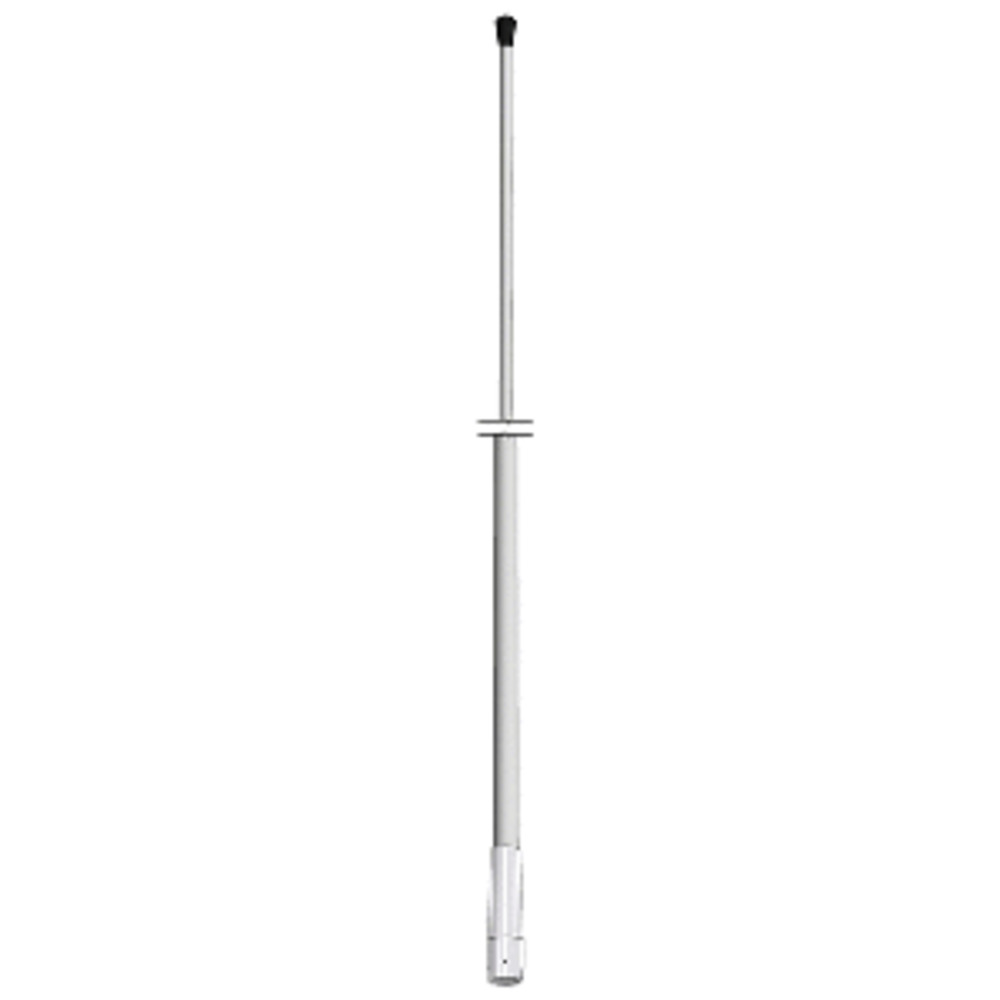

AM/FM60 BI AM/FM 8′ Antenna (cable sold separately)

BI Series Antennas have a BNC connector at the base and cable is center-fed. and nbsp

The AM/FM series is a broadcast receiving antenna for AM/FM and are also well suited as Navtex passive receive antenna. Antennas are available in two lengths of 4 ft and 8 ft. They are high quality antennas with a durable construction and a beautiful finish for installation on all kinds of vessels. and nbsp

Specifications:

  • Frequency Range: 0.5-108 MHz
  • Antenna Length: 8′
  • Nominal Impedance: 75 ohm
  • Power Rating: Receive Antenna
  • Pattern: Omnidirectional
  • Polarization: Vertical
  • Connector: BNC Female
  • DC Grounded: Yes
  • Design: Whip with transformer. Radiating element completely enclosed in polyurethane foam within a fiberglass radome.
  • Wind Rating: 55 m/s=125mph
  • Finish: Polyurethane lacquer, white

Additional information

Weight 4 kg
