Description

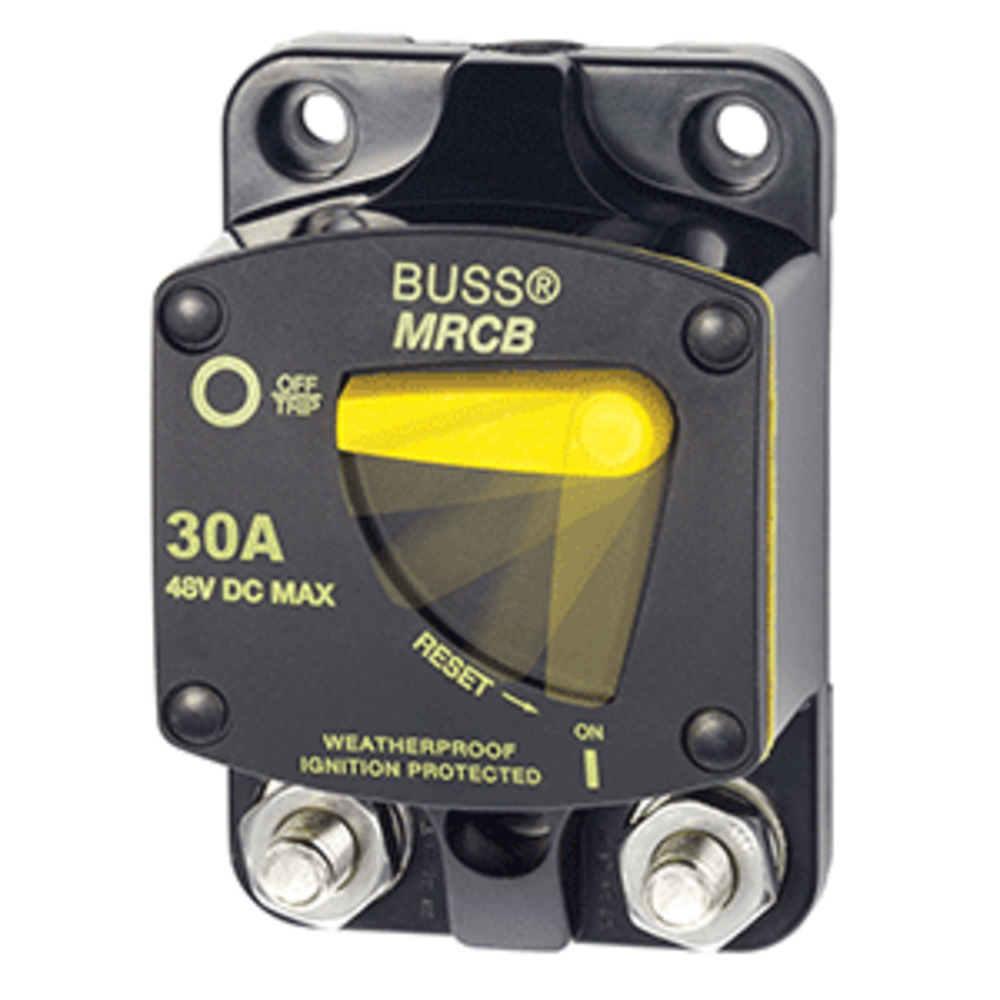

187 – Series Thermal Circuit Breakers – Surface Mount
30 Amp Circuit Breaker
PN: and nbsp and nbsp7136
Features:
- Combines switching and circuit protection into a single device
- All components meet SAE J1171 external ignition protection requirements
- Clear, single lever operation
- and quotTrip Free and quot design cannot be held and quotON and quot during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected – safe for installation aboard gasoline powered boats
| Specifications | and nbsp |
| Circuit Breaker Class: | Type III – Switchable / Manual Reset – Trip Free |
| Type: | Thermally Responsive Bi-Metal Blade |
| Case Material: | Thermoset Polyester |
| Voltage Rating: | 48 Volts DC Maximum |
| Interrupt Rating: | 5,000 Amperes @12 Volts DC |
| and nbsp | 3,000 Amperes @24 Volts DC |
| and nbsp | 1,500 Amperes @42 Volts DC |
| Operating Temperature Range: | -25C and #176 to +82C and #176 |
