Description

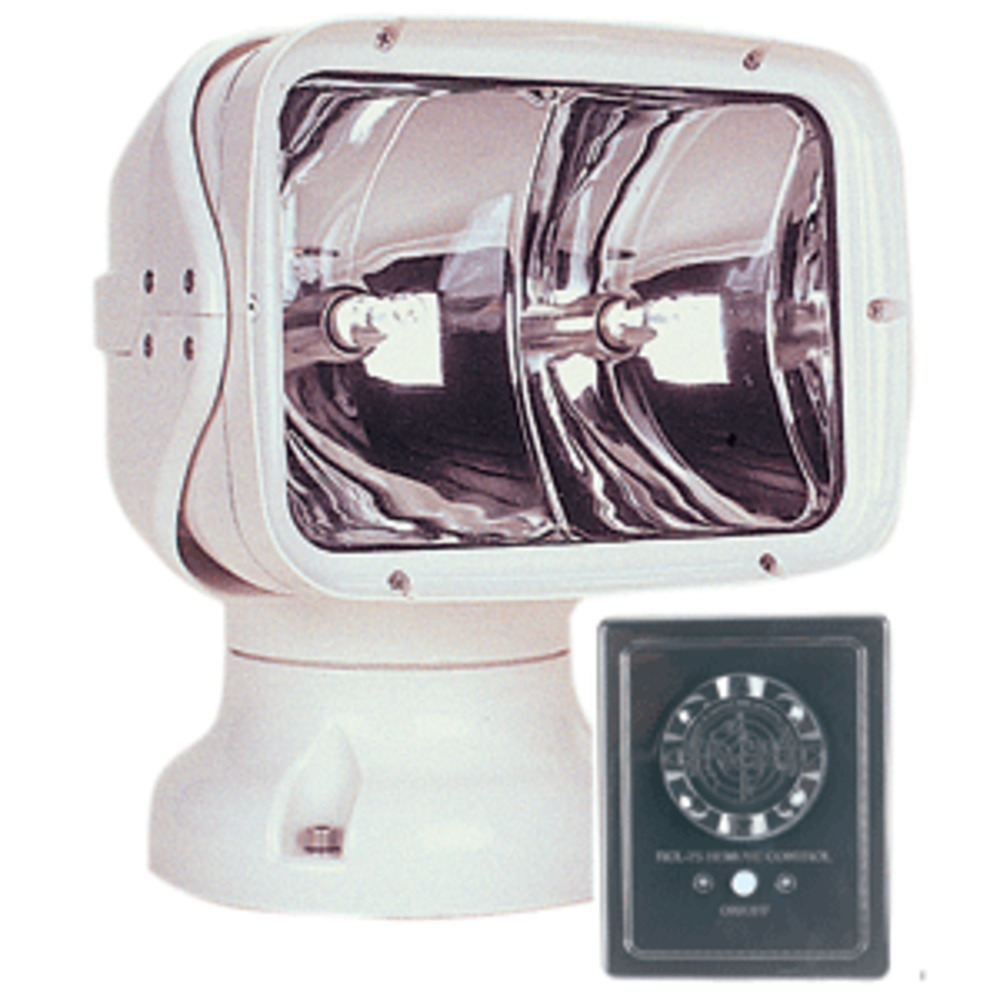

RCL-75 Searchlight with Point Pad and trade – 180,000 Candella – 12V
Features:
- Dual lamp design provides redundancy, reliability-works when you need it
- Bright, powerful halogen beam with 3 h x 5 w beam spread
- Easy-to-install Point Pad-style joystick control
- Robust, function-and feature-rich searchlight is easy to install
- 7-wire wiring harness, 17′ length
- Electronics located in water-resistant light head, instead of traditional light base location, for protection from water accumulation
- 45 and deg down pitch ocular design provides enhanced visibility when docking
- 18 and deg up pitch to illuminate draw bridge towers, etc.
- Lamps easily replaced by removing top cap to access rear light assembly
- Desiccated filter dries air protects reflector and light assembly
- Innovative “direct drive” system eliminates uncontrolled light movement in choppy conditions
- Heavy-duty gear teeth and electric motors
Specifications:
- Size: 7.5″ x 8.75″ x 7.5″(19.1 x 22.2 x 19.1 cm)
- Weight: and nbsp4.2 lbs (1.9 kg)
- Msterial: and nbspUV ASA
- Color: and nbspWhite, UV protected
- Operation: and nbspRemote controlled Point Pad and trade
- Beam Angle: and nbsp3 and degvertical, 7 and deg horizontal
- Elevation Angle: and nbsp63o vertical (18o up, 45o down)
- Rotation: and nbsp361o
- Rotation Speed: and nbsp6-7 and deg per second,
- Elevation Speed: and nbsp6-7 and deg per second (12 VDC)
- Dual Lamps: and nbspHigh intensity 55W Halogen, 2 each
- Limited Warranty: and nbsp1 year
- Units per Carton: 1, complete and nbspwith cable, point pad and special wrench/screwdriver. Special shapeable 1″ riser plate available
Accessories:
- Recessed/Surface mount Point Pad remote control replacement bulb Product No. 9403
- Replacement light assembly Product No. 9404
- Secondary Point Pad and trade (P/N 9428)
- Stackable 1″ riser (P/N 9427)
- 2nd station cable harness (P/N 9426)
- Second station harness adapter(P/N 9442)
